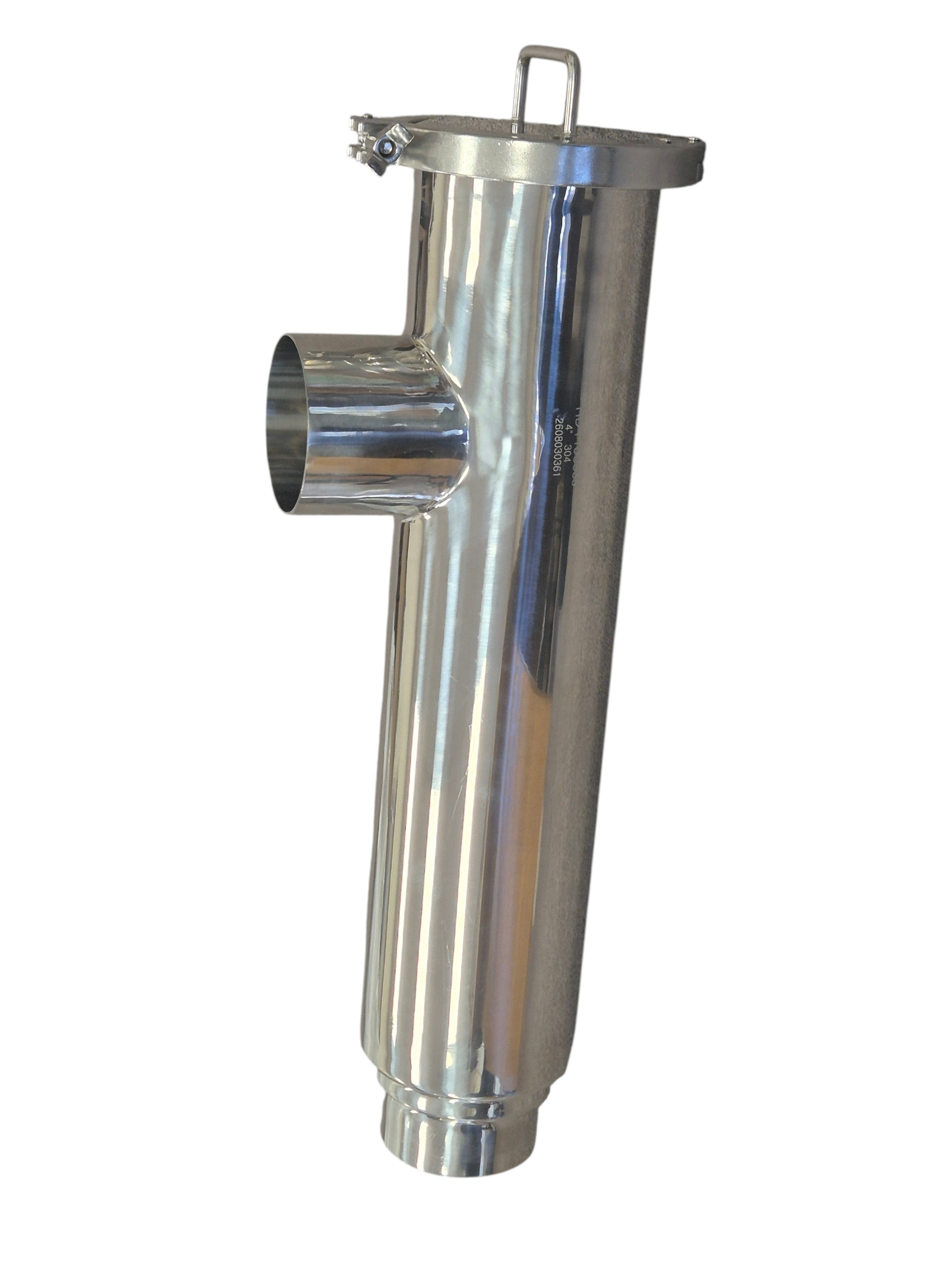

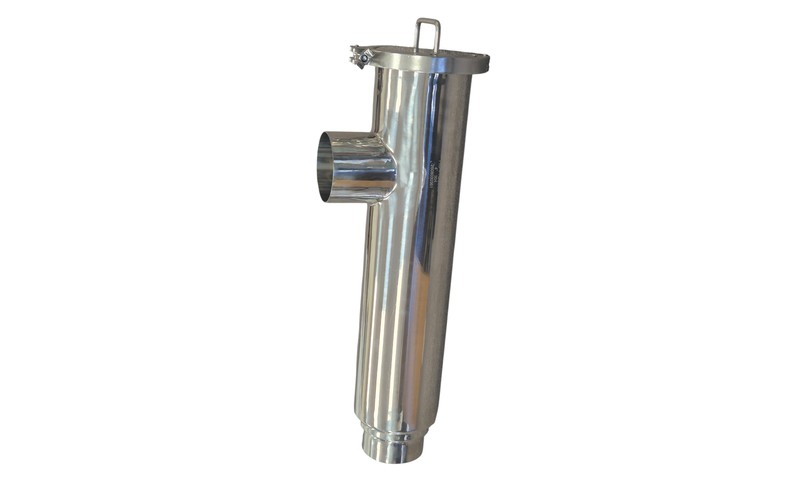

GS-SA Right Angle Filters 1 to 4 Inch

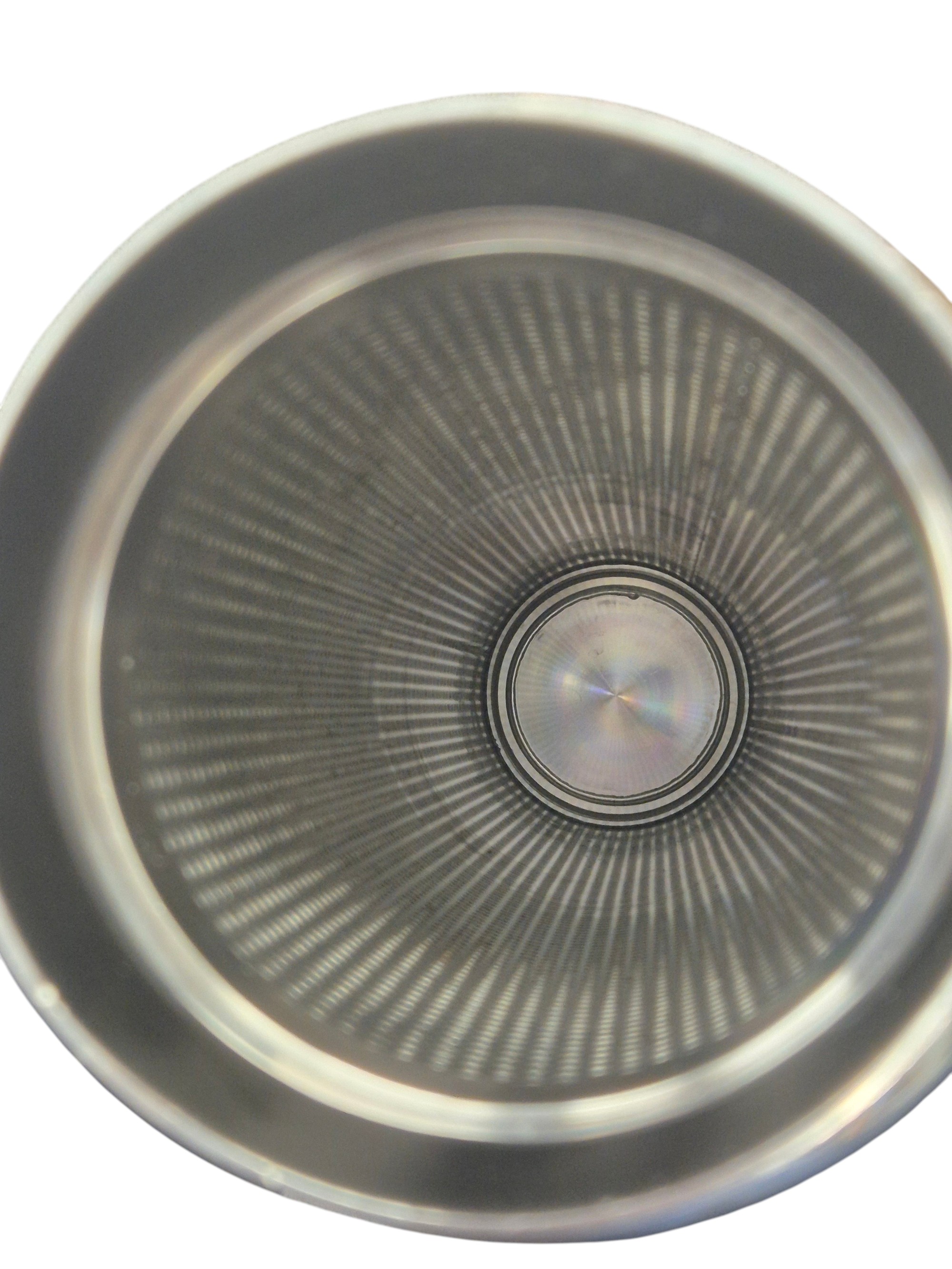

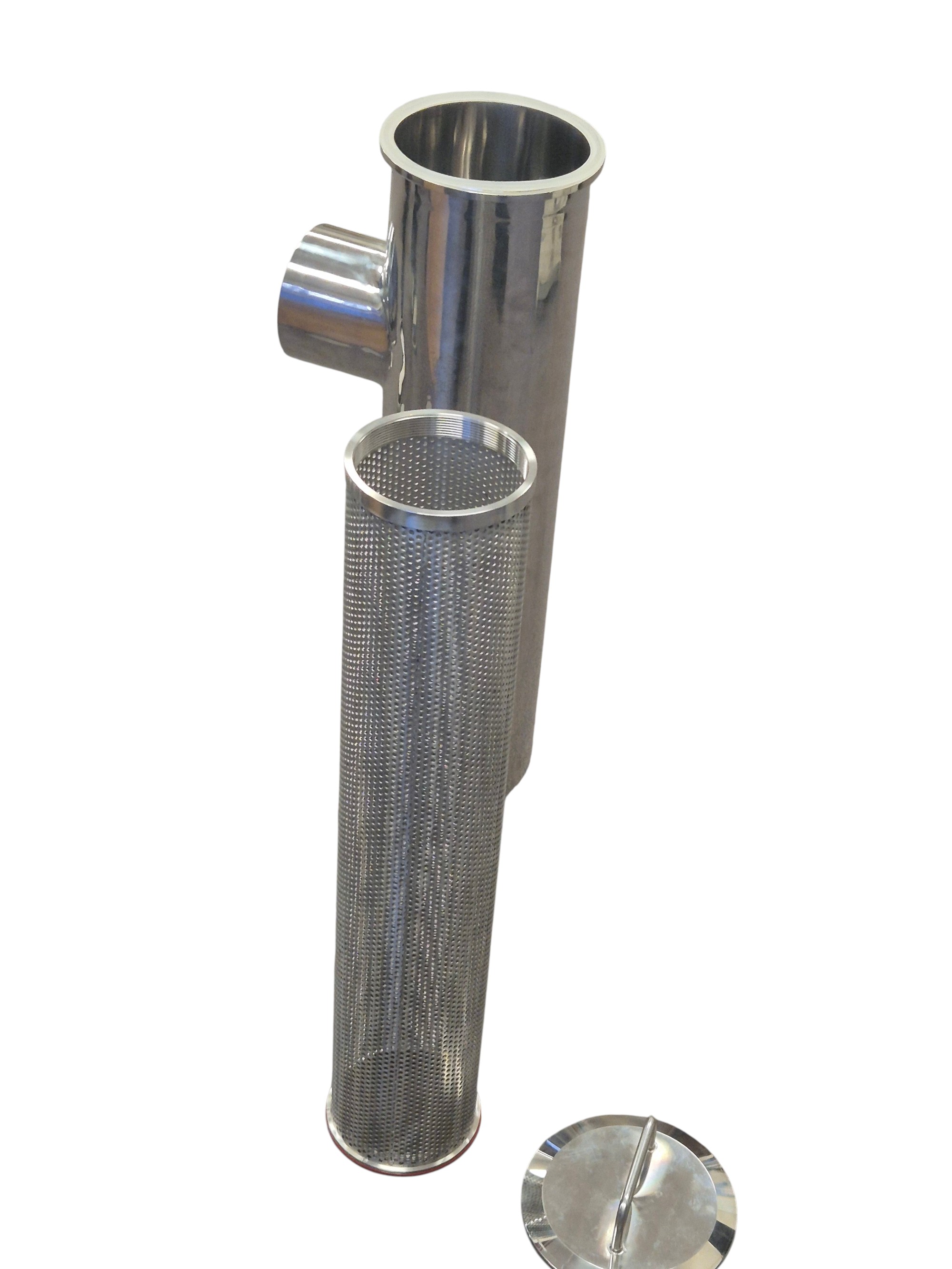

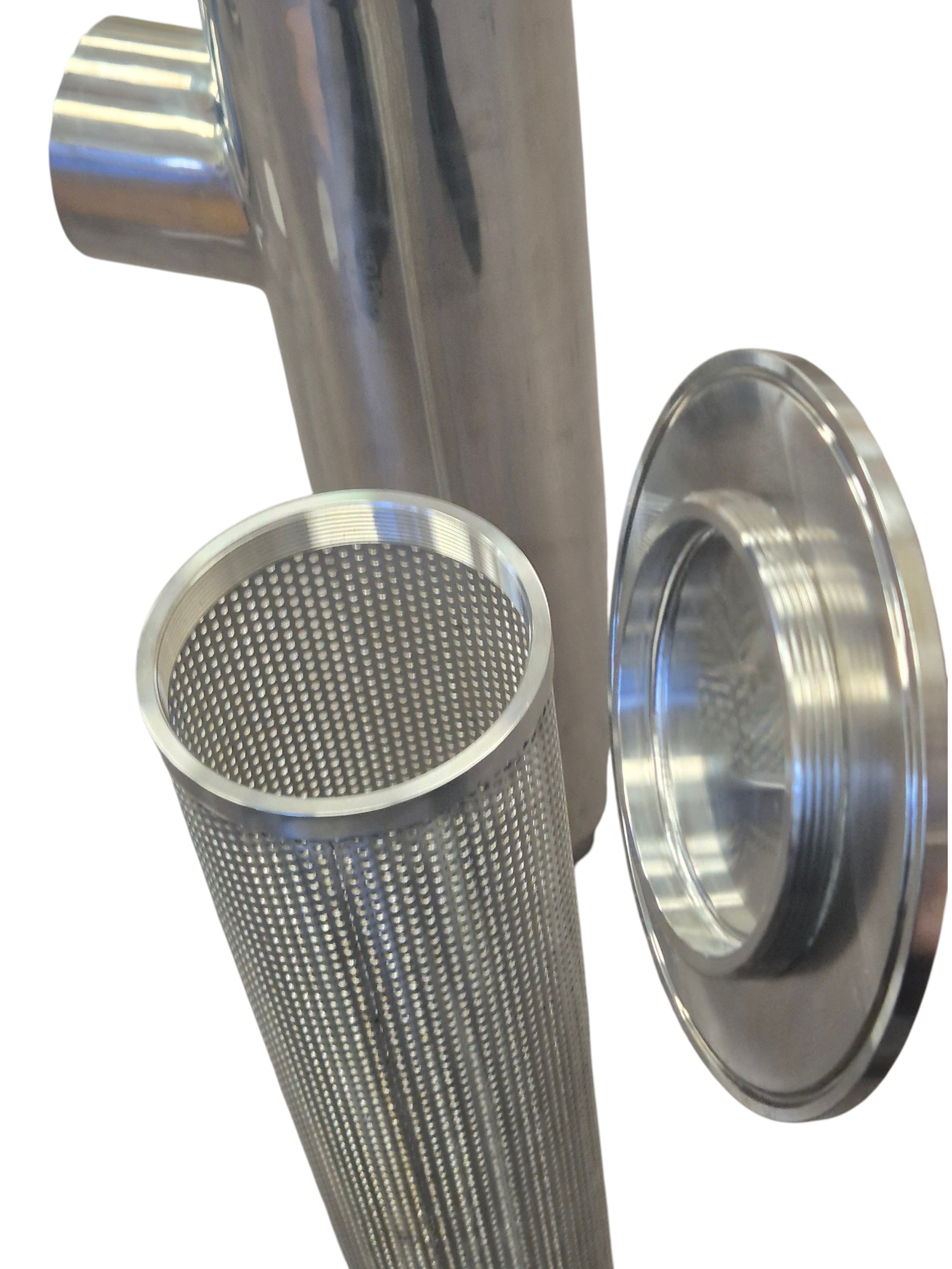

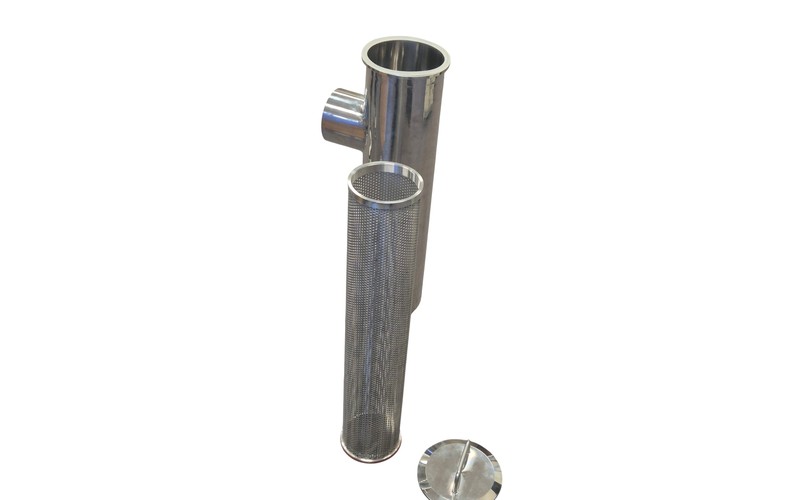

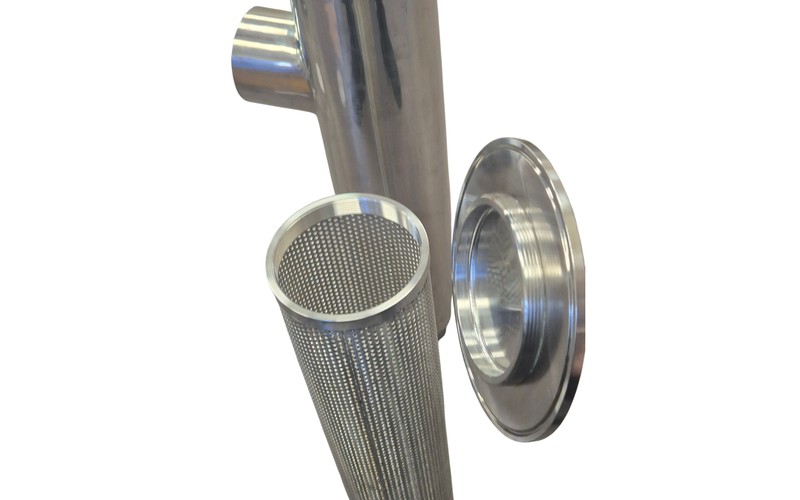

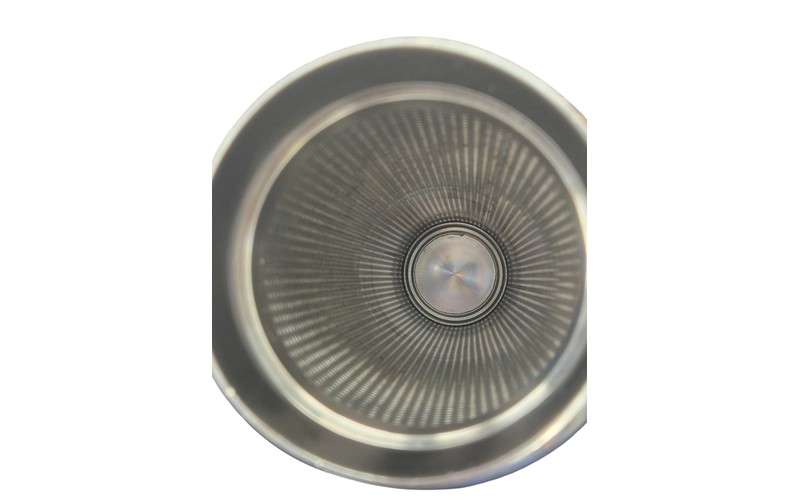

The GS-SA range comprises weld-end right angle filters in nominal sizes from 1 to 4 inches. The housing has side and bottom process connections, with a choice of perforated, wedgewire or perforated plate with gauze filter inserts.
Weld ends are the standard configuration shown in the dimensional datasheet. Custom connections are also available.
Available Sizes and Filter Inserts
- Nominal sizes: 1, 1.5, 2, 2.5, 3 and 4 inches.
- Perforated plate inserts.
- Wedgewire inserts.
- Perforated plate inserts with gauze.
GS-SA Dimensional Drawing
The GS-SA dimensional datasheet includes the housing drawing and dimensions L, H, D, D1 and K for all six sizes. Dimensions are stated in mm, except nominal size.
Contact HD Process to discuss the GS-SA size, insert and connection configuration for your application.
