Right Angle Filters (601 type)
HD Process 601 hygienic filter range is available for line sizes from 1" up to 8" (and generally off-the-shelf in 1 " to 4 " line size). Additionally HD process have a number of bespoke ranges of filters that can be made to order, particularly for large-size applications (including the GS60 and GS80 ranges)
These are available in 304 or 316L stainless steel construction.

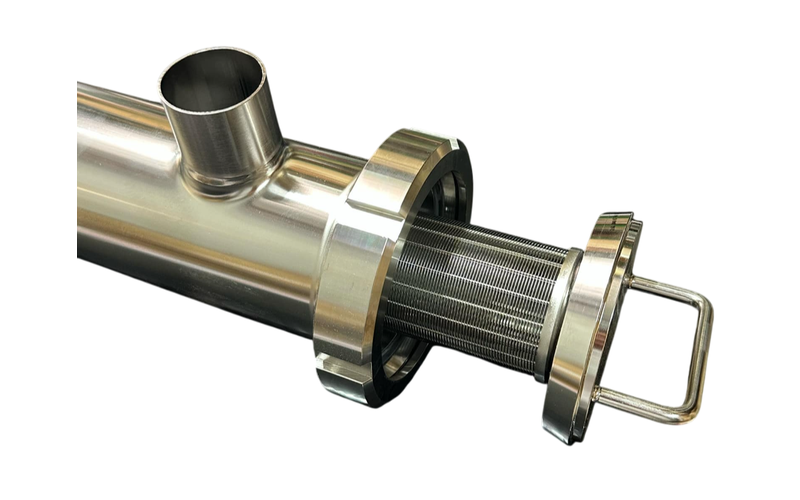

- As well as single right angle filters, these can be provided in straight through or duplex designs. These filters tend to be designed for low pressure loss with removable filter element.

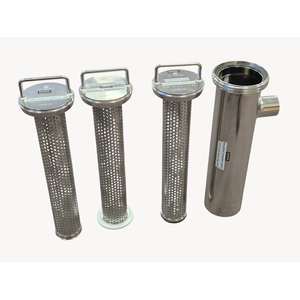

- Filter insert options are available in wedgewire (slotted tube), perforated plate, perforated plate with gauze and sandwich element (reinforced mesh)
- Filtration sizes down to 63 micron absolute
- As well as the off the shelf 601 range HD process make larger filters with eg non standard extended bowls for greater surface area/retention and longer time between filtration cycles.
See also DUPLEX HOUSINGS;

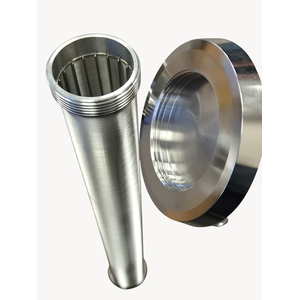

Filter-Inserts for Right Angle Filters
Wedgewire (slotted), perforated plate and sandwich profiles available Standard 601/701 wedgewire flow for filtration - FITO (from inside to outside) FOTI - Flow from outside to inside also available Wedgewire …

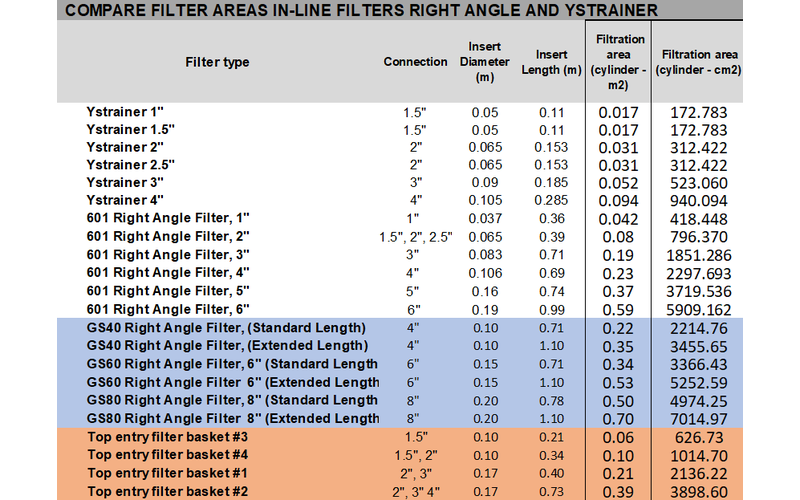

601 and Right Angle Filter Dimensions, Insert Size and Open Area Comparison
Download Dimension data for various sizes of the 601 filter housings here.
