Magnetic Non-Return Valves NZ | Springless Check Valves

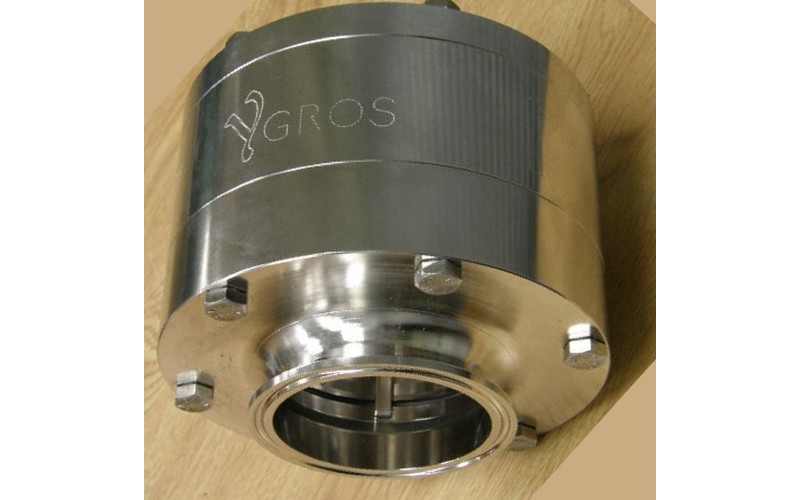

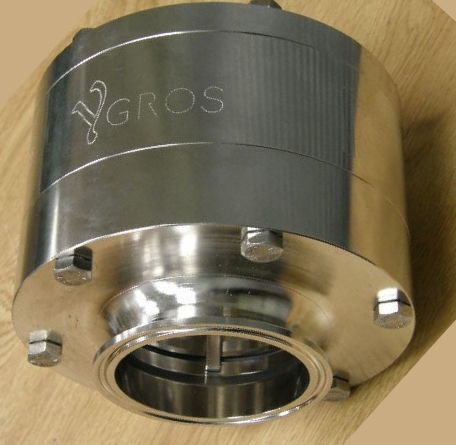

YGROS magnetic non-return valves use integral magnets rather than a conventional spring to close the internal shutter. The springless design reduces flow obstructions and internal product-retention points.

Springless Magnetic Closure

Forward pressure moves the shutter away from the magnets and opens the valve. When forward flow stops, magnetic attraction returns the shutter to its seat and prevents reverse flow.

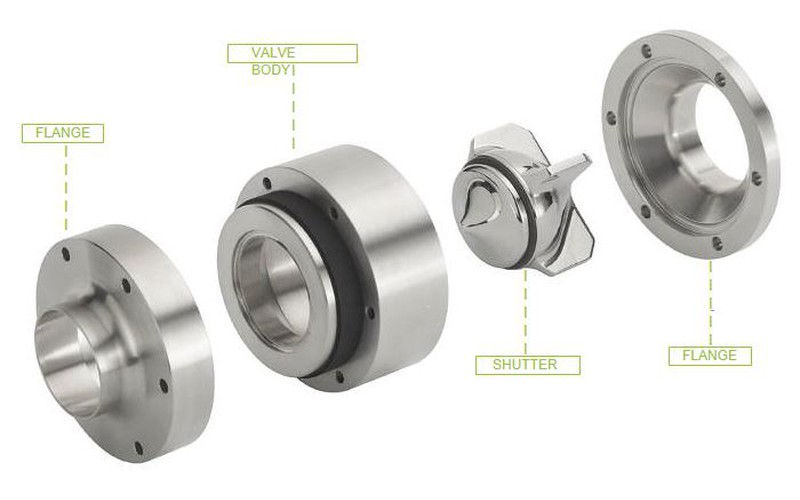

Materials and Connection Options

• 316L stainless steel body and flanges
• Duplex stainless steel shutter
• NBR, EPDM, silicone, FPM and FEP seal options
• Weld, Tri-Clamp and threaded connections
• Suitable for liquid, gas and steam duties
• Standard operating pressure of PN16

Contact HD Process for magnetic non-return valve options.
