Smart Progressive Cavity Pump
HD Process provide SMART pumps (pumps controlled by PLC and HMI/ programmable logic controllers and human machine interface) for easy operator use and flexibility in parameters and control. HD Process pumps are also configured to operate through more standard BATCH CONTROLLER interfaces (preconfigured dedicated controllers for batch dispensing).
The SMART PUMPS are designed to allow the operator to either deliver an accurate measure for a dose/ filling application (bottle/container/bag/tank) or to be able to walk away and allow a larger predefined batch volume to be delivered tank to tank.
These units commonly have flowmeters mounted on board to meter volumes, however the more positive pumps (progressive cavity, peristaltic, lobe pumps ) can be set up to operate with encoders or pulsing proximity sensors feeding back to the PLC interface (allowing for accurate flow dosing without the use of a flowmeter).

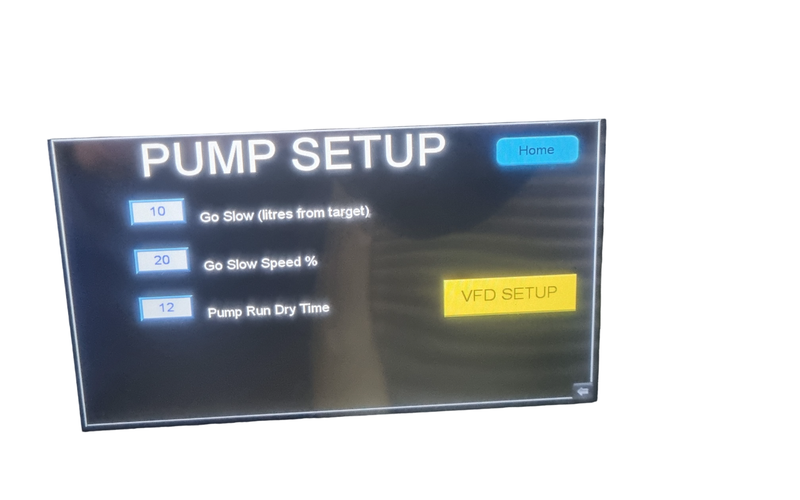

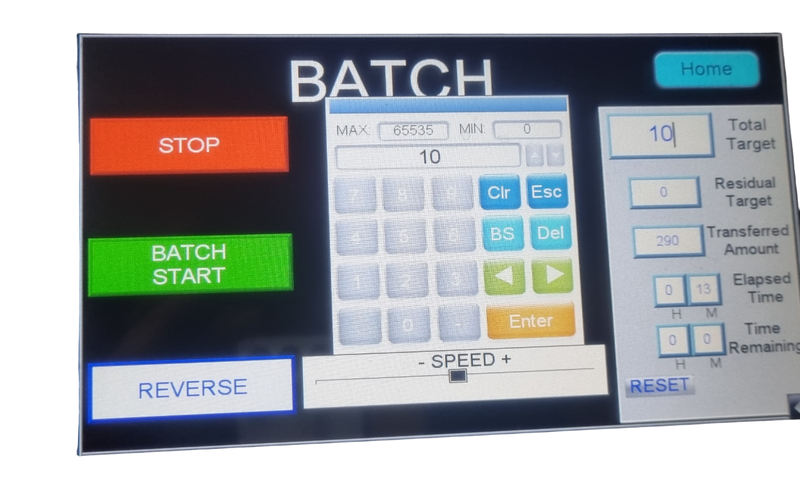

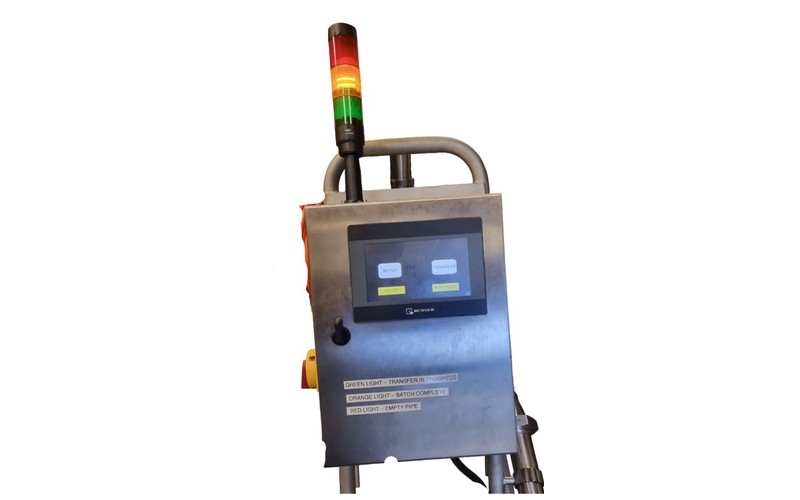

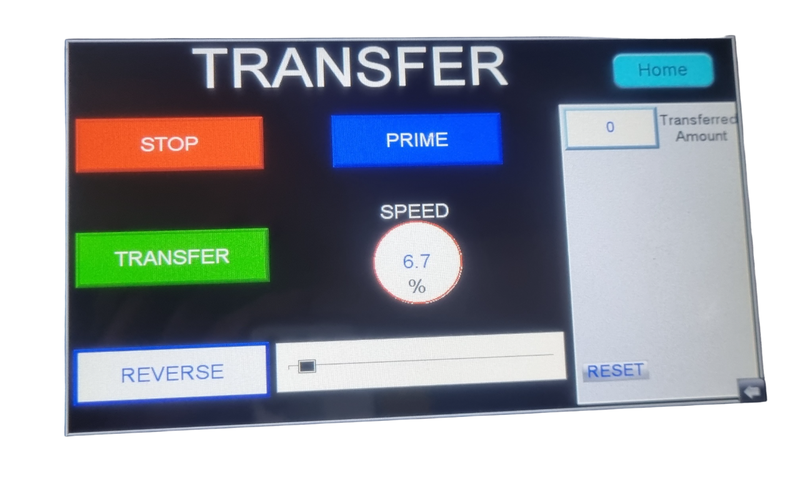

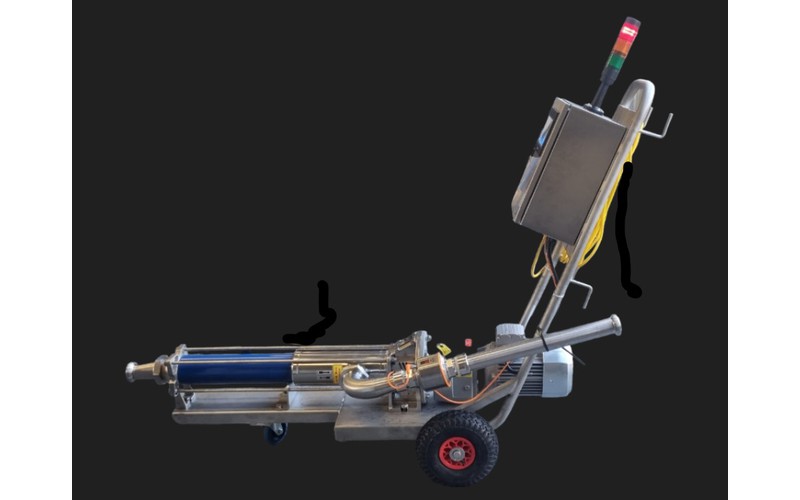

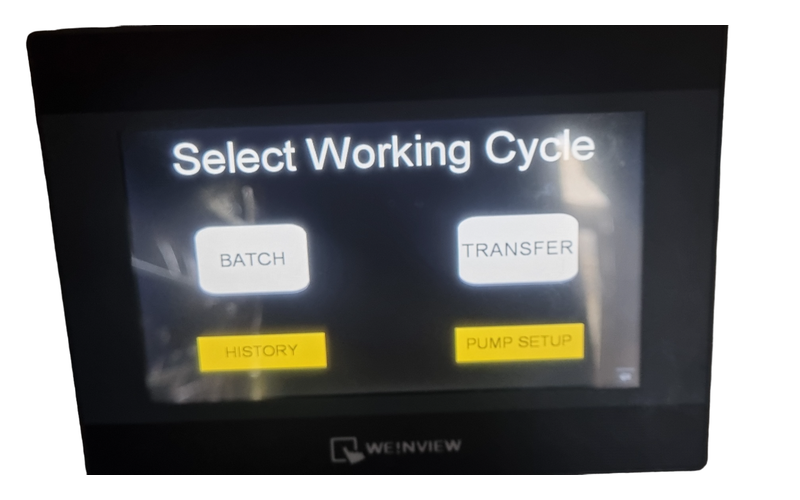

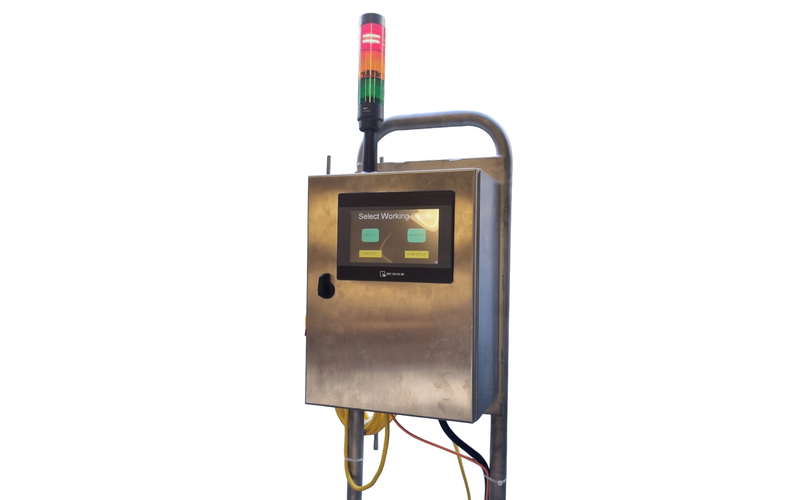

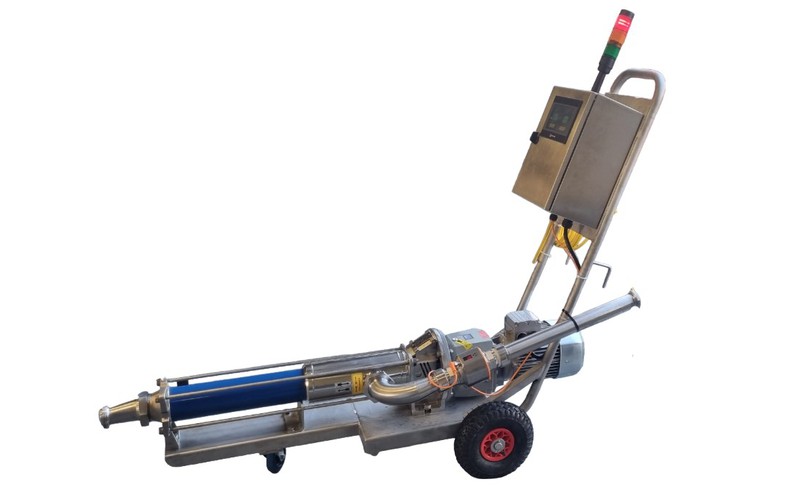

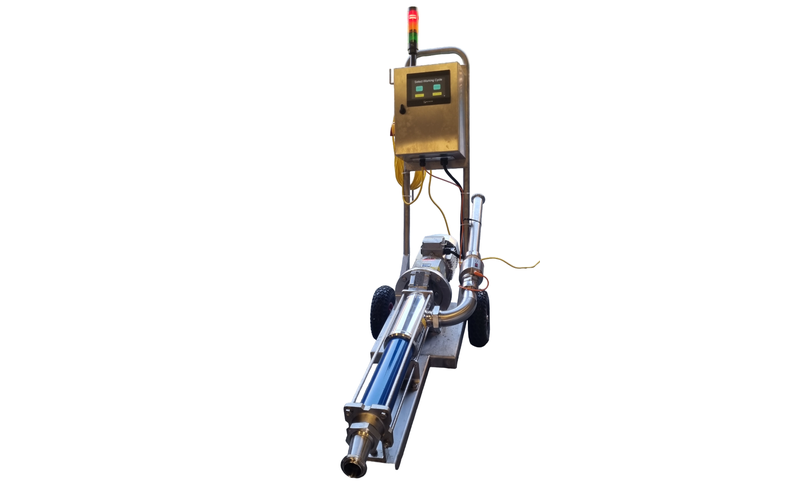

This particular section shows details of a CSF MAE70L 2.5 " progressive cavity pump with Siemens PLC. This model uses an IFM magnetic flowmeter. Provides batch control, time to control and other interface functionality. See screenshots eCetera from the interface HMI here.
Some of the pumps that HD process can deliver with controller interfaces include;
- Centrifugal pumps.
- Flexible impeller pumps
- Peristaltic pumps
- Lobe pumps
- Rubber Lobed pumps
- Progressive cavity pumps
Flowmeters that are used include magnetic flowmeters (for conductive/water-based products ) and specialist positive displacement flowmeters for oils.
