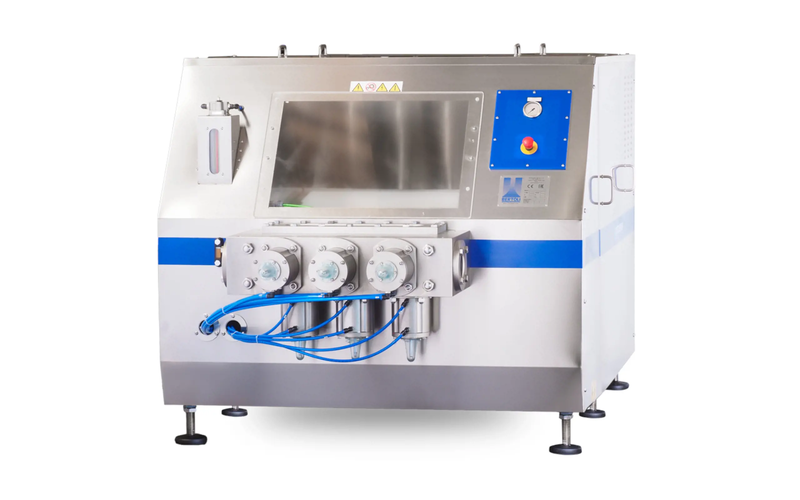

Bertoli PS34 Self-Priming High-Pressure Piston Pump
HD Process supplies Bertoli piston pumps for high-pressure liquid processing and continuous production duties. The referenced PS34 is a self-priming, three-plunger pump designed to deliver controlled flow at pressures up to 70 bar.
The PS34 combines a forged AISI 316 liquid end, ceramic plungers and a heavy-duty drive arrangement. Bertoli identifies the unit as self-feeding by gravity, so the product supply and inlet arrangement must be considered during pump selection.
PS34 Flow, Pressure and Connection Data
- Maximum stated capacity: 12,000 L/h.
- Maximum stated pressure: 70 bar.
- Plunger quantity: three.
- Plunger stroke: 107 mm.
- Product inlet and outlet connection: 3 in clamp connection and socket-weld flange.
- Cooling-water consumption: 200 L/h.
Liquid-End and Drive Construction
- Forged AISI 316 stainless steel liquid-end block.
- Three integral ceramic Al₂O₃ plungers.
- H-ECOPUR single-element plunger seals.
- Stellite 20 valve seats and poppet valves.
- Splash-lubricated drive system.
- Direct transmission with an integrated gear reducer.
- Nitrided crankshaft and stainless steel frame.
CIP, Instrumentation and Product-Handling Options
The PS34 is stated as suitable for CIP/SIP circulation rates up to 24,000 L/h. A flow-switch alarm can also monitor the cooling-water circuit.
- Electric power board for variable-capacity operation.
- Abrasive-product version.
- Alternative valve design for slurry or formulated products.
- Digital 4-20 mA pressure transmitter with a ceramic membrane.
Information Required for Piston Pump Selection
Pump selection should account for the required flow, discharge pressure, product viscosity, solids or abrasive content, inlet conditions, operating temperature, cleaning cycle and preferred connection arrangement.
Contact HD Process with your product properties, required flow and operating pressure to confirm whether the Bertoli PS34 suits the duty.
