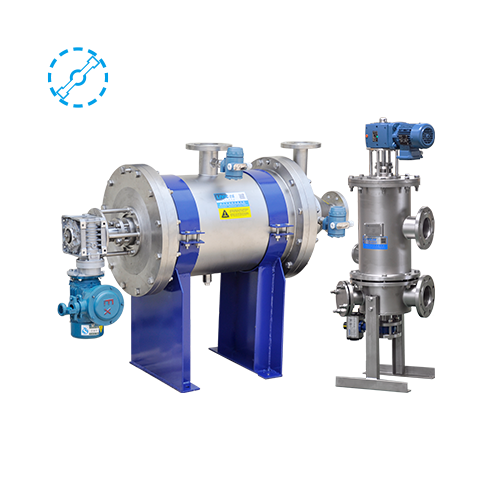

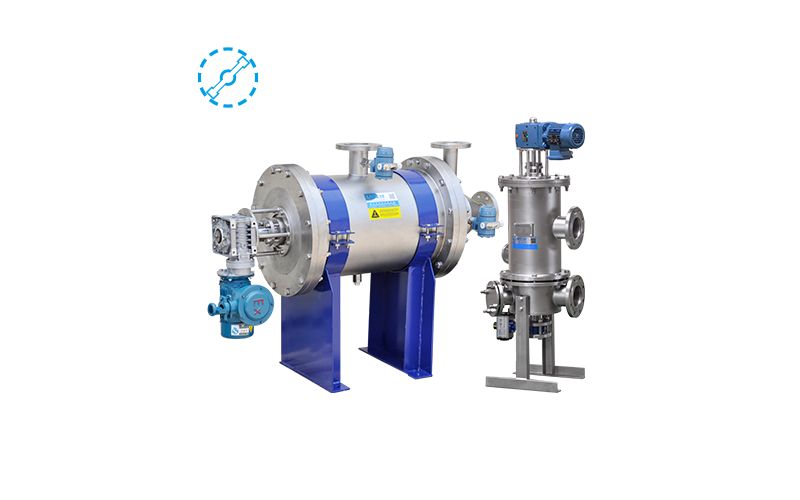

BetaFlo Self Cleaning Filter

HD Process offers the BetaFlo Automatic Backwash Filter. The BetaFlo Self‑Cleaning Filter is engineered for applications where uninterrupted flow, stable pressure, and reduced manual maintenance are essential. Its automated cleaning mechanism ensures consistent filtration performance, protecting downstream equipment and maintaining operational efficiency across demanding industrial environments.

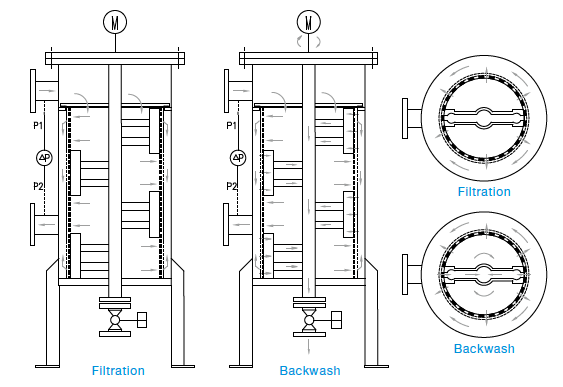

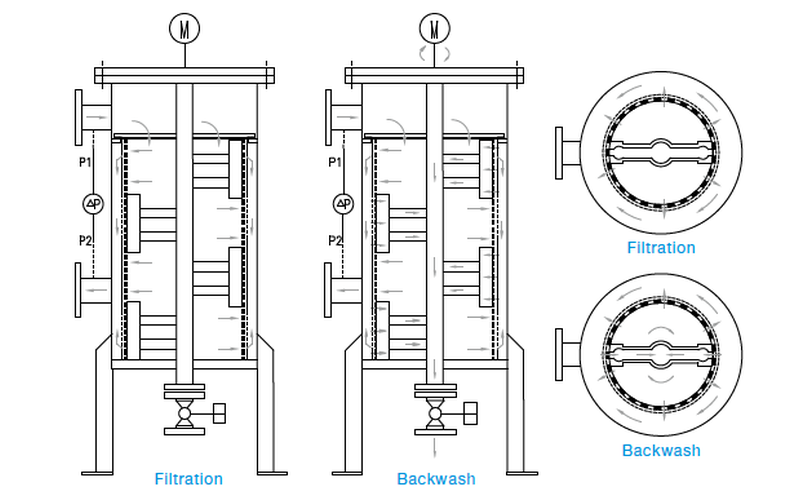

The BetaFlo Livic filter uses a suction‑scanning or mechanical scraping system to remove accumulated solids from the screen surface. Cleaning cycles activate automatically when the pressure differential reaches a preset value.

Process Sequence

• Inlet flow enters the housing and passes through the internal screen.
• Solids accumulate on the screen surface.
• Differential pressure rises, triggering the cleaning cycle.
• Suction scanner or scraper engages, removing debris.
• Waste discharge opens, flushing solids without interrupting filtration.

Automated Self‑Cleaning Operation -Differential‑pressure‑triggered cleaning maintains consistent flow and eliminates manual intervention.

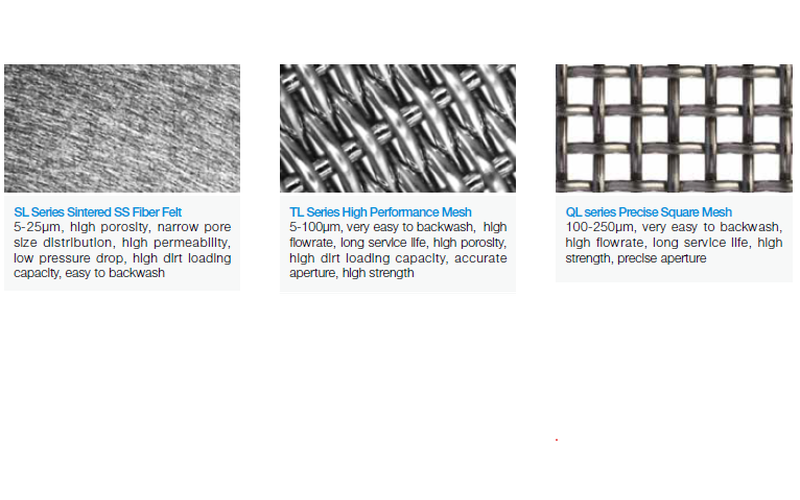

High‑Efficiency Screen Design - Precision mesh options from 50–2000 μm deliver reliable particle capture with minimal pressure loss.

Durable Industrial Construction - Available in 304/316 stainless steel, duplex, and chemical‑resistant alloys for harsh environments.

Low Maintenance Requirements - No consumable filter elements; mechanical cleaning reduces downtime and lifecycle cost.

Stable Flow Performance - Designed to protect pumps, nozzles, heat exchangers, and critical process equipment

These are recommended for the following industries:

Geothermal

Oil & Gas

Petrochemical

Fine Chemical

Automotive industry

Water treament

Precision Metal Working

DOWNLOAD Betaflo Brochure (2 Pages)

DOWNLOAD Betaflo Instruction Powerpoint (9 Pages)
