Basket for Top Entry Filters - Wedgewire

HD process can provide a range of top entry filter baskets which are interchangeable with GAF, Hayward, Eaton, Loefflerr and other brands.

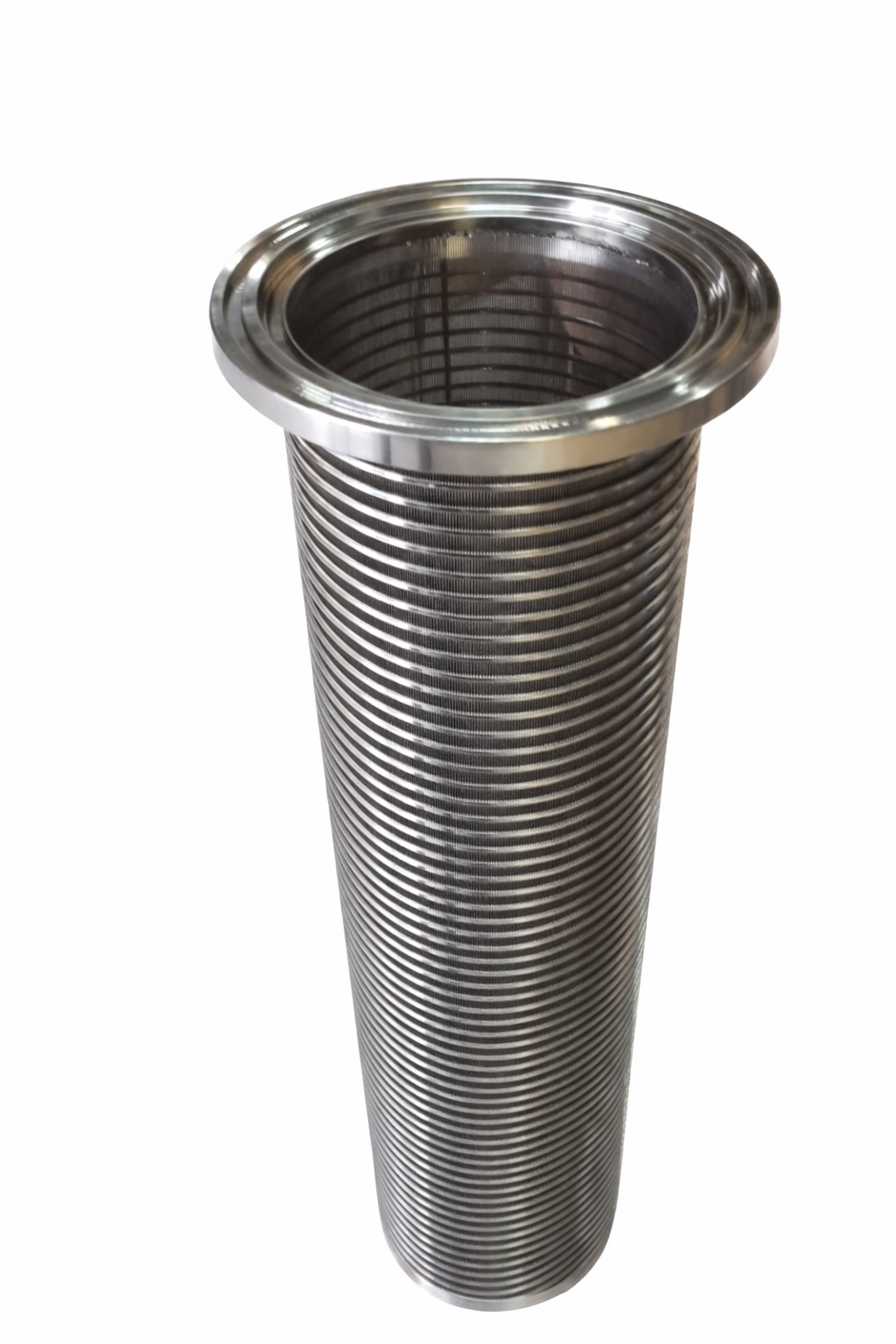

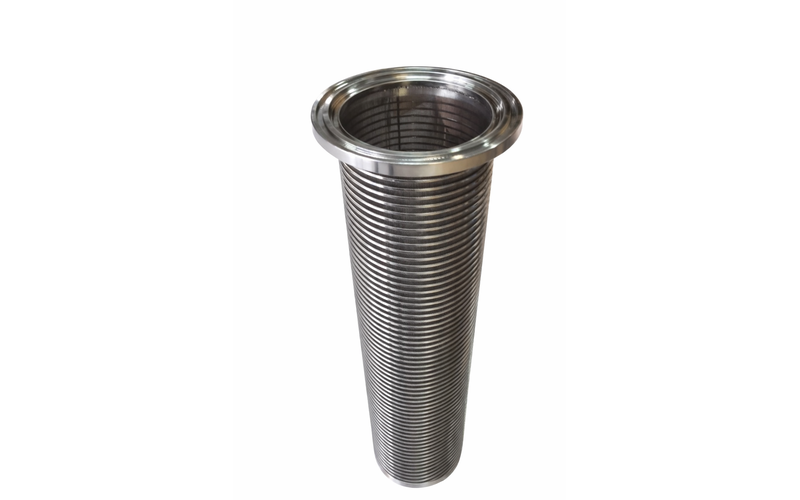

Photos attached here show the wedgewire variant for more specialised applications where robustness is required.

• #2 filters have inferred hold-up volume of approximately 17 L (a torpedo will reduce this number)
• #2 filters have inferred surface area of 0.4 m²
• #2 filter L= 730mm D= 170mm, #1 Filter L= 400mm D= 170mm
• Perforated plates normally provide a 30 to 40% open area. Wedgewire baskets commonly provide a 40% open area.
• Mesh grid type baskets would typically provide an open area in excess of 50 percent.
• #1 filters are approximately half of surface areas and volume of #2 filters (8L and 0.2 m² respectively)
• These baskets can be used with double bag, single bag and no bag.
