Straight Filter Range NZ - Hygienic Stainless Steel Inline Filters | HD Process
HD Process supplies a straight filter range for hygienic inline filtration in food, beverage, dairy, wine, honey and general process applications. This parent page brings together both the HD Process generic straight filter range and the Inoxpa straight filter range, giving NZ processors a practical starting point when selecting a removable inline strainer for product protection and debris capture.
Straight filters are suited to installations where a straight-through flow path is preferred and where operators need access to a removable filter element for inspection, cleaning and change-out. Depending on the range selected, units are available with basket or tubular inserts, multiple aperture options and common hygienic end connections to suit existing stainless process lines.
Key specs
- Hygienic stainless steel straight filters for inline particulate removal
- Available in 304 or 316L stainless steel, depending on range
- Straight-through design for low pressure loss applications
- Removable filter element for inspection, cleaning and maintenance
- Insert options include perforated plate, wedge wire, perforated plate with gauze and sandwich element
- Filtration sizes available down to 63 micron absolute on applicable ranges
- Generic HD Process straight filters commonly supplied with tri-clamp or weld connections
- Generic basket insert models are fully detached from the line to empty trapped product
- Indicative size availability across linked ranges extends from DN25 and 1" upward, depending on model and connection standard
Options

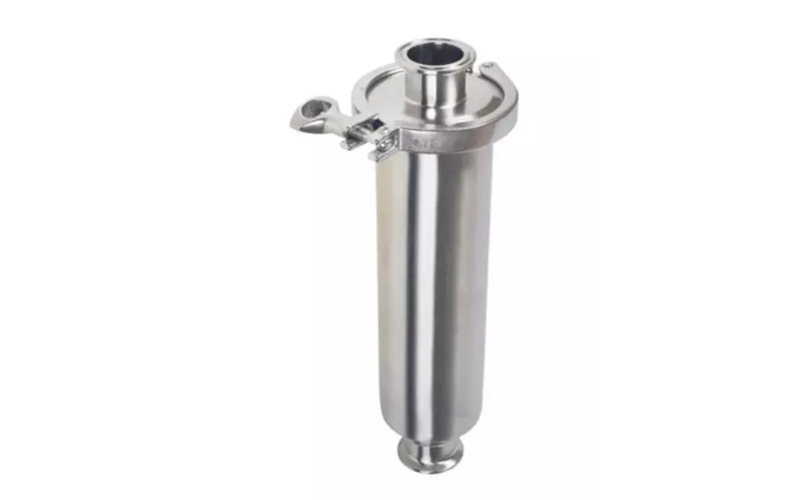

- HD Process generic straight filter with basket insert

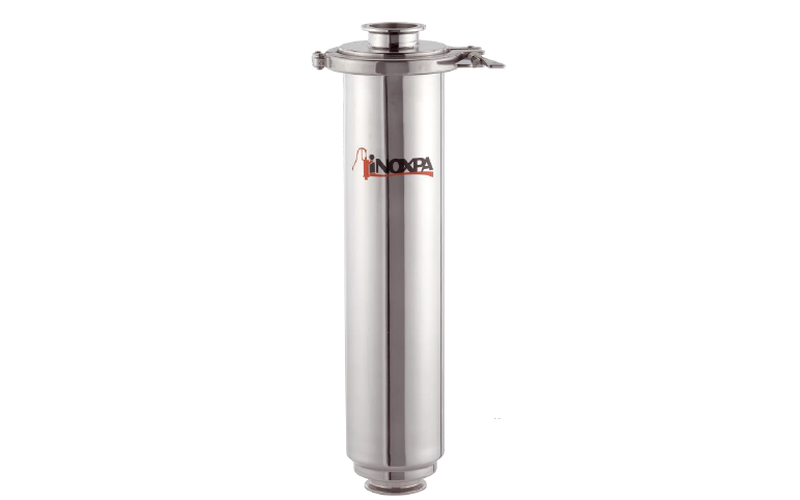

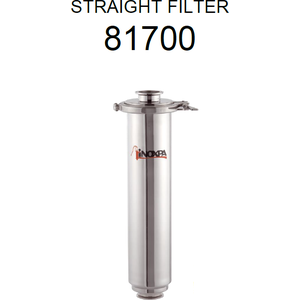

- Inoxpa straight filter range

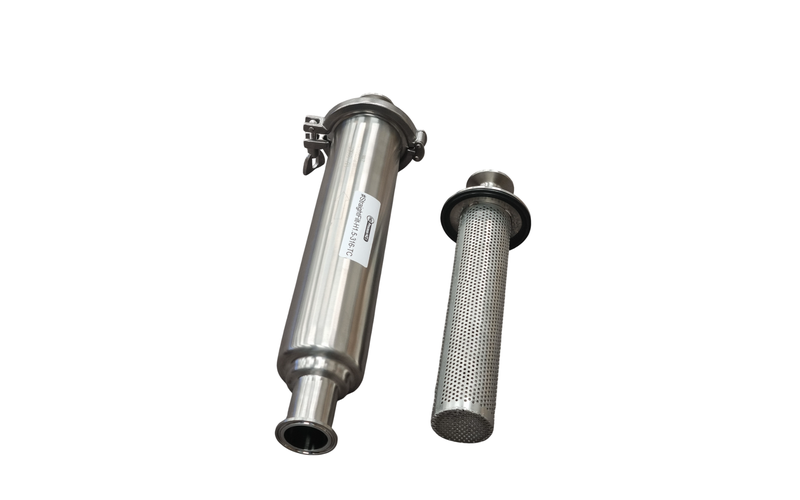

- Perforated plate insert
- Wedge wire insert
- Tri-clamp, weld and other hygienic connection options depending on model
- Material and aperture selection to suit product, solids load and cleaning requirements
Applications
- Protecting pumps, valves, flowmeters and downstream process equipment
- Inline filtration on hygienic transfer, dosing and recirculation lines
- Food, beverage, dairy, wine, honey and CIP-related process duties
- Process lines requiring removable inserts and straightforward manual cleaning access
Talk to HD Process to compare the generic and Inoxpa straight filter ranges and select the right housing, insert style, aperture and connection for your line.
