Gear Pumps - with Stainless Steel Bodies

HD Process provide geared pumps with stainless steel bodies.

All stainless steel gears are available in pumps 1.5 " and larger. For smaller pumps gears are produced in PEEK in shafts and generally in stainless steel or ceramic. Motors can be provided as standard 240/ 400 VAC or as servo motors.

For chemical duties and other special applications, as an alternative to stainless steel, bodies are also available in hastelloy and polyphenylene sulphide.

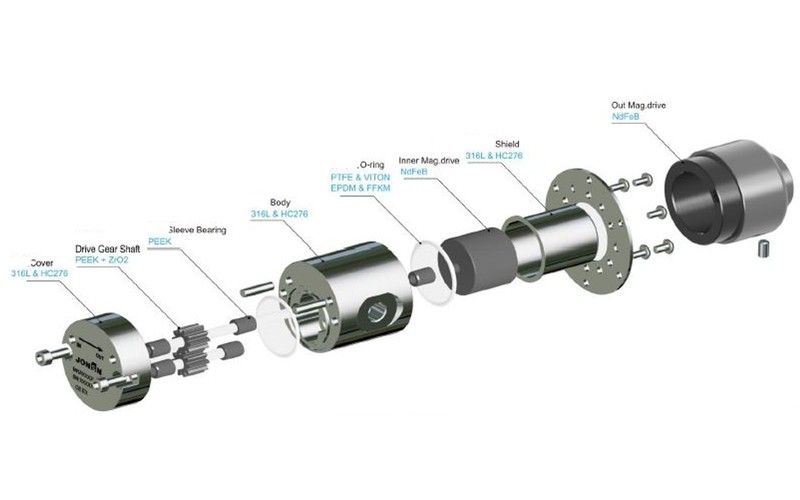

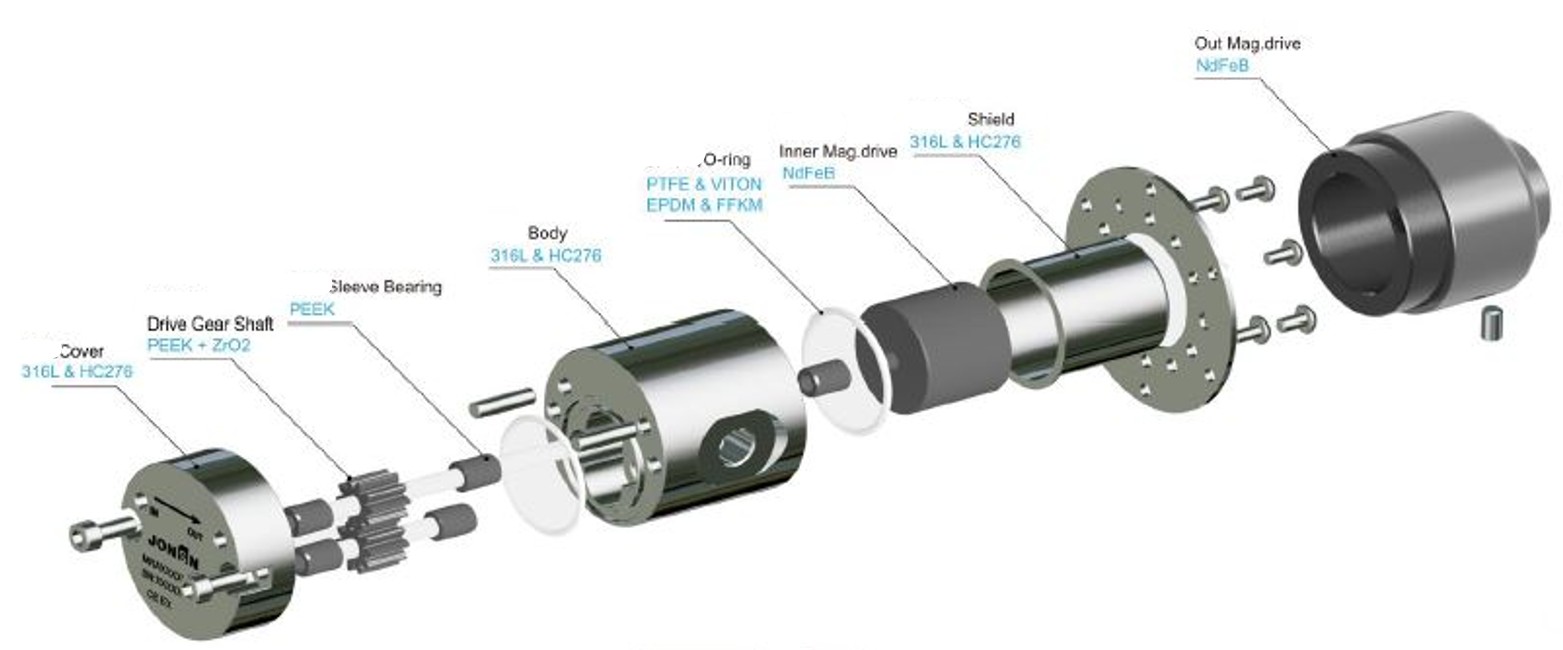

Many of these units are supplied with magnetic drive motors, which means no shaft seals are required. Quite commonly these type of pumps are used in harsh chemical duty applications but are useful for many other applications as well.

MATERIALS

Body – stainless steel 304, 316L. Hastelloy

Gears – PEEK (polyetheretherketone, is a high-performance thermoplastic known for exceptional strength, chemical resistance, and ability to withstand high temperatures).

Seals – Teflon , EPDM, VITON, PFA
