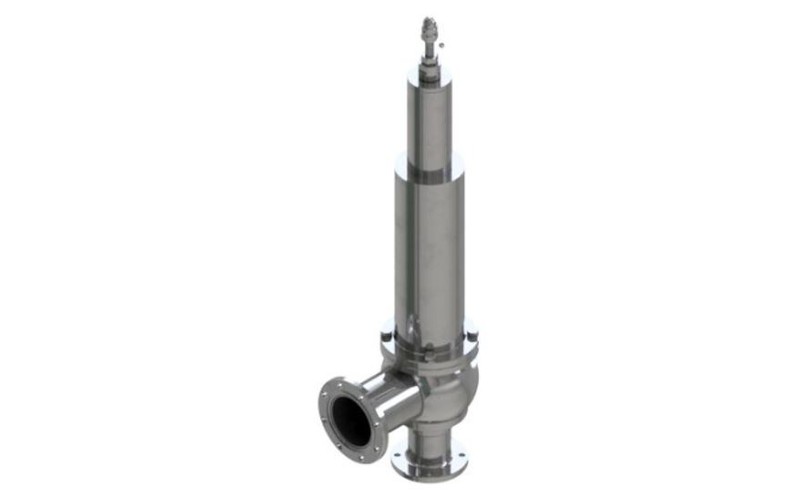

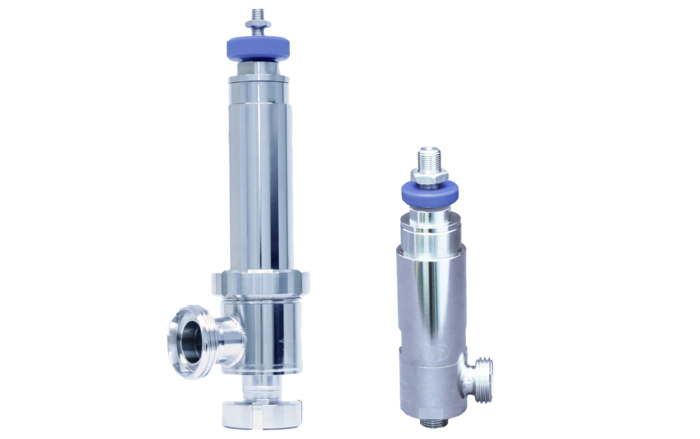

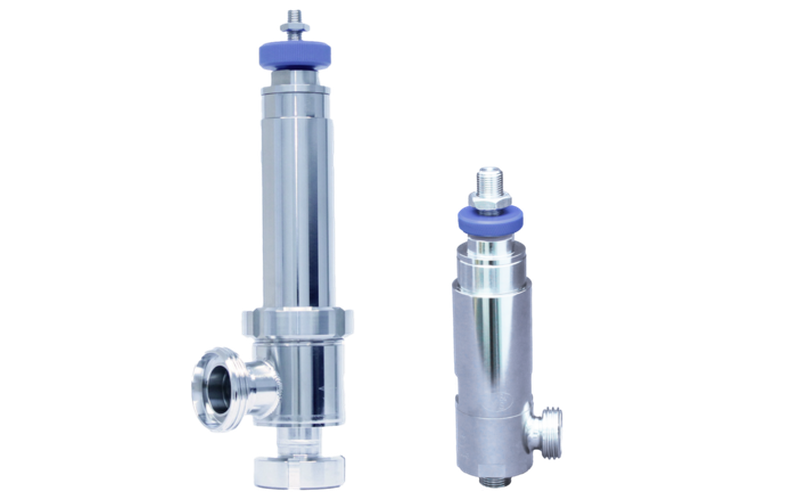

M&S safety Valves
HD Process supplies top of the range M&S Armaturen safety valves for overpressure protection for gas and liquid media. This is applicable to Fluid group II and finds use in pharmaceutical, food and beverage, cosmetics and chemical industries with a proven reliable track record.
Features:
- Spring loaded mechanism that reseals after normal pressure resumes
- TÜV component-tested: Certified for safety and reliability under the Pressure Equipment Directive (PED 2014/68/EU).
- Constant set pressure to ensure consistent relief
- Dead space free spherical housing
- Hygienic design for food safe finish
- Surface finish on product surfaces is Ra ≤ 0.8 µm and non product surfaces Ra ≤ 1.6 µm
- Suitable for non-toxic gases, steam and neutral, non adhesive liquids (FLUID GROUP II)
Optional Features:
- Pneumatic lifting device for seat cleaning
- Lead sealing - For tamper-proof operation
- CIP Device integration - Increases cleaning efficiency
- Position Feedback - Enables monitoring of valve status
- Valve heating - Prevents condensation or freezing in cold environments
