Knife Gate Valve
Reliable isolation for slurries, fibrous pulps and abrasive fluids. Supplied and supported in New Zealand by HD Process.

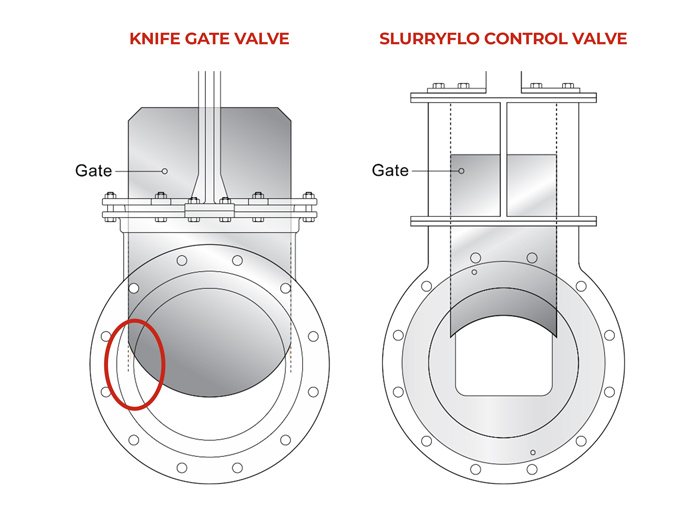

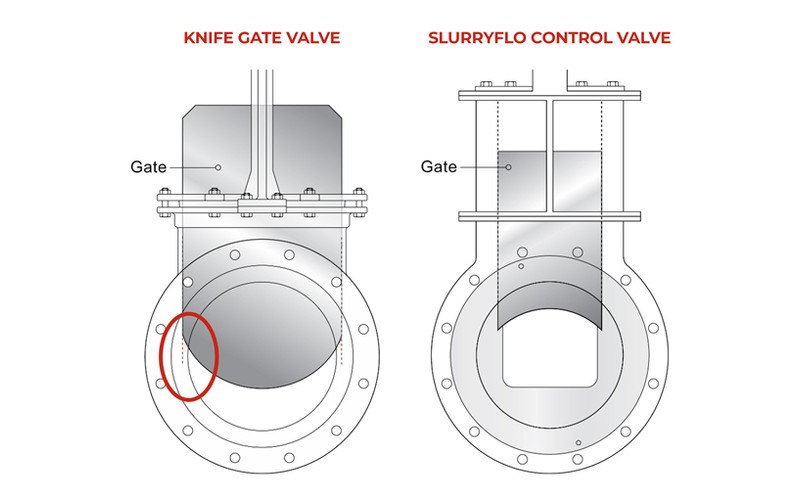

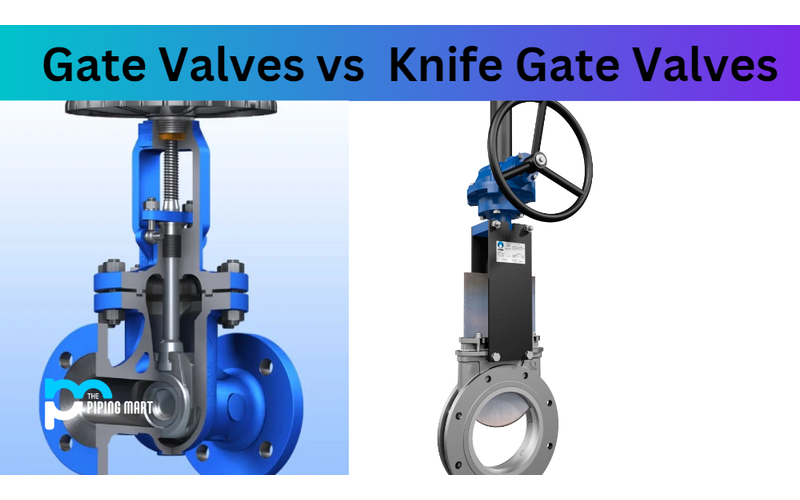

Knife gate valves provide on-off isolation where wedge gates or butterfly valves struggle. A thin, sharpened gate cuts through solids and closes tight, making them ideal for wastewater, mining, pulp and paper, food waste and bio-process slurries in NZ plants.
Typical applications
-
Wastewater, sludge lines and grit removal
-
Mining tailings, thickener discharge and cyclone feeds
-
Pulp and paper stock, recycled fibre and reject handling
-
Food and beverage by-products, peels, seeds and pulp streams
-
Biomass pre-treatment and digestate handling
Key features
-
Uni-directional and bi-directional shutoff options
-
Resilient or metal seats to suit temperature and abrasion
-

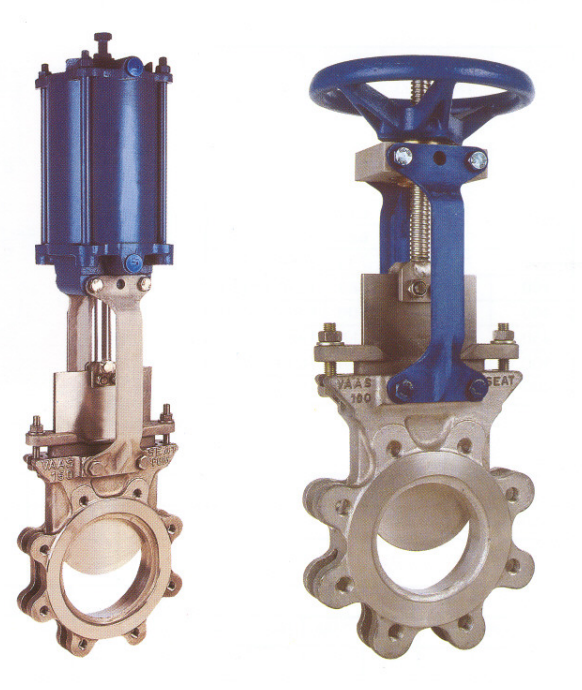

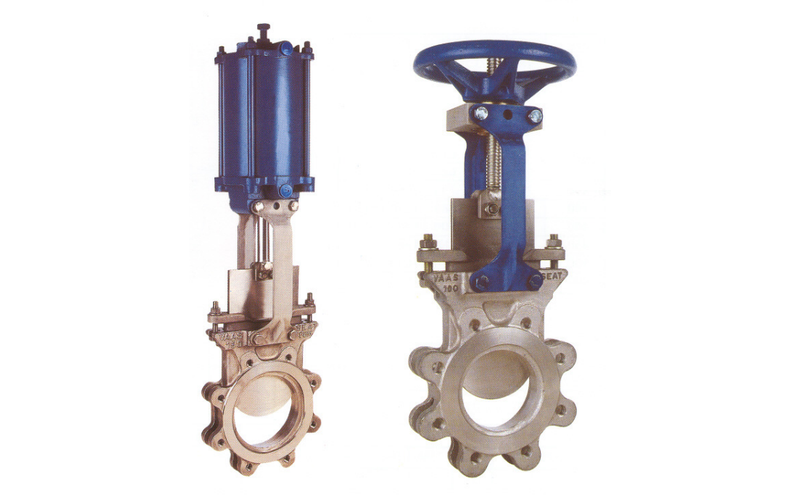

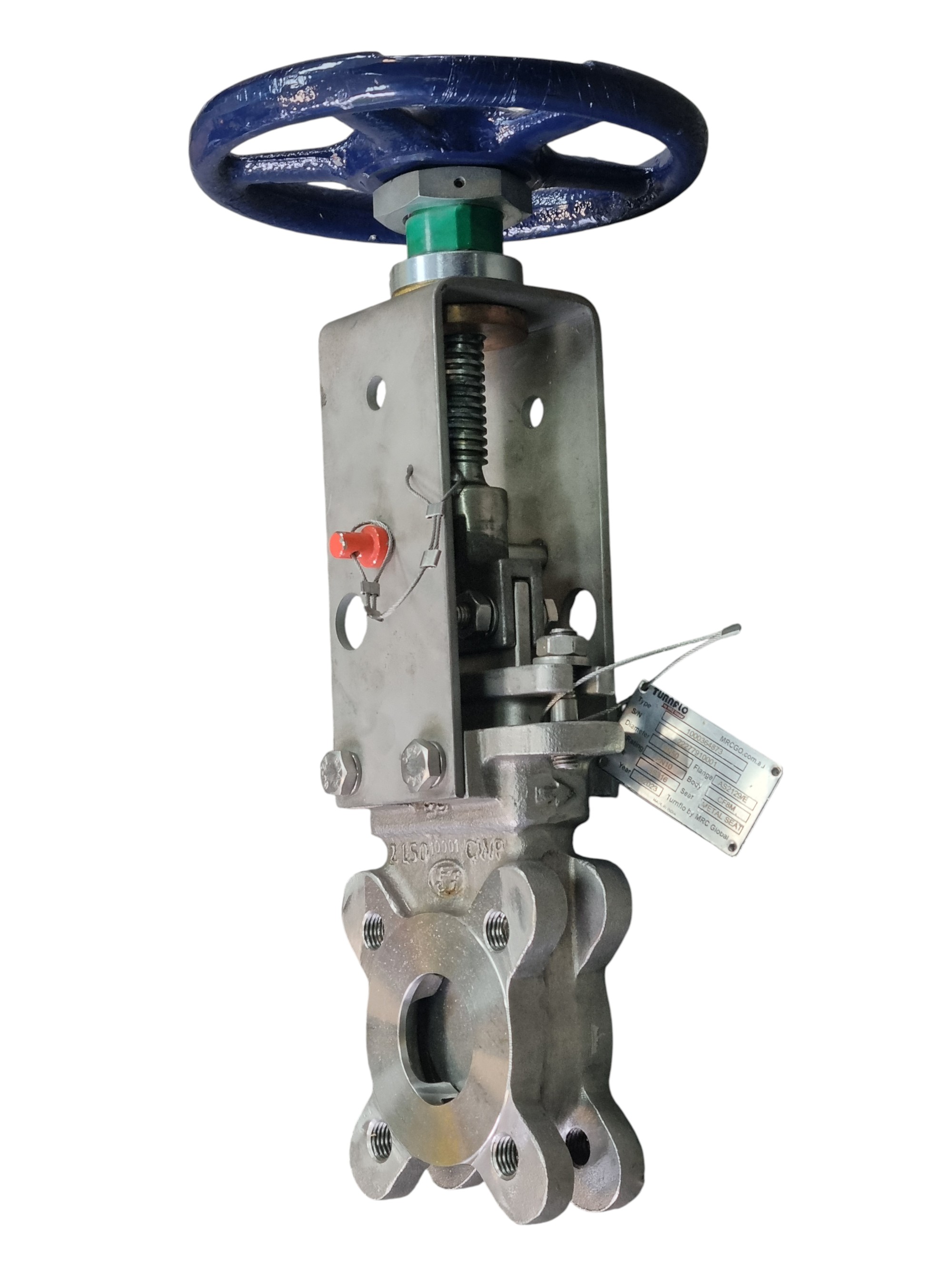

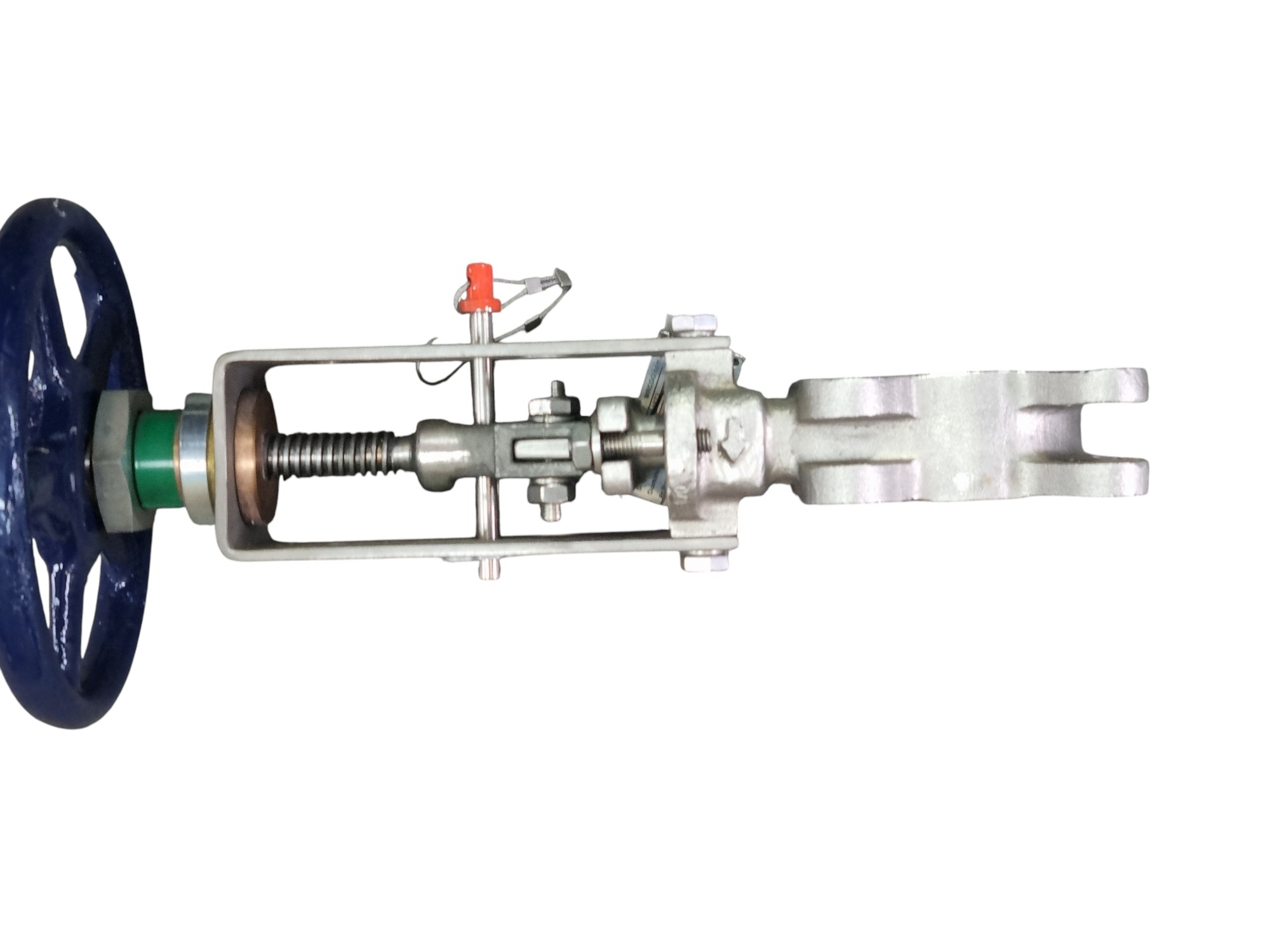

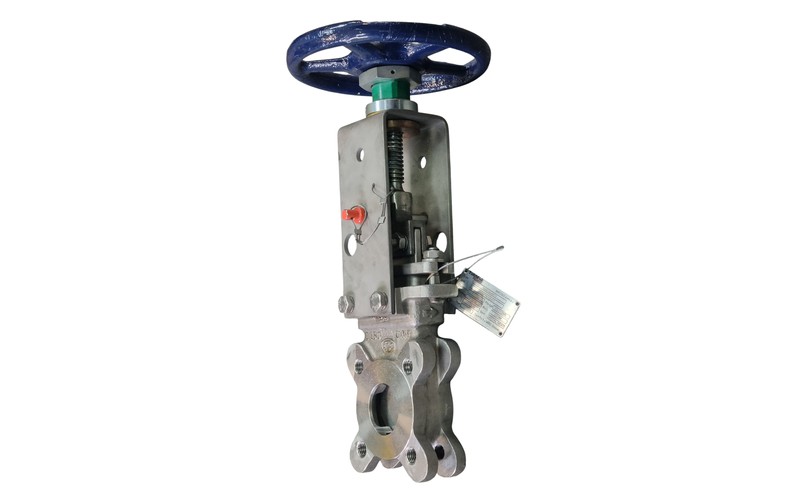

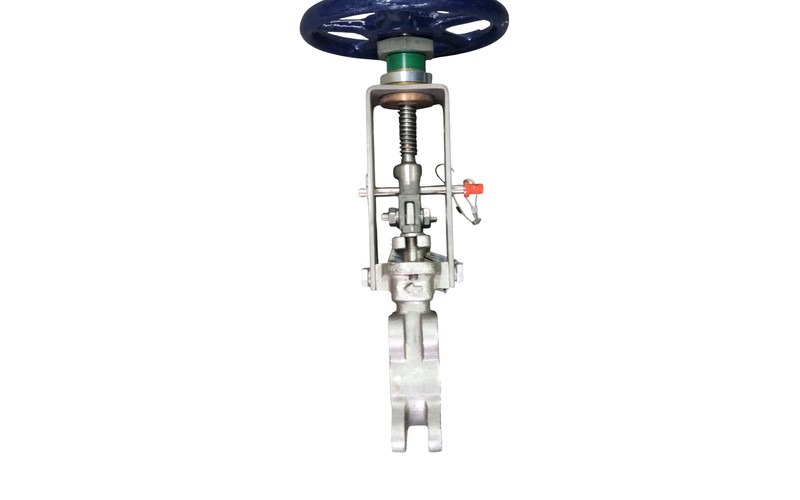

Manual handwheel or gearbox, pneumatic cylinders, electric actuators
-
Wafer, full-lug and flanged bodies to match AS/NZS and ANSI drilling
-
Purge ports and bonneted options for sticky or odorous media
