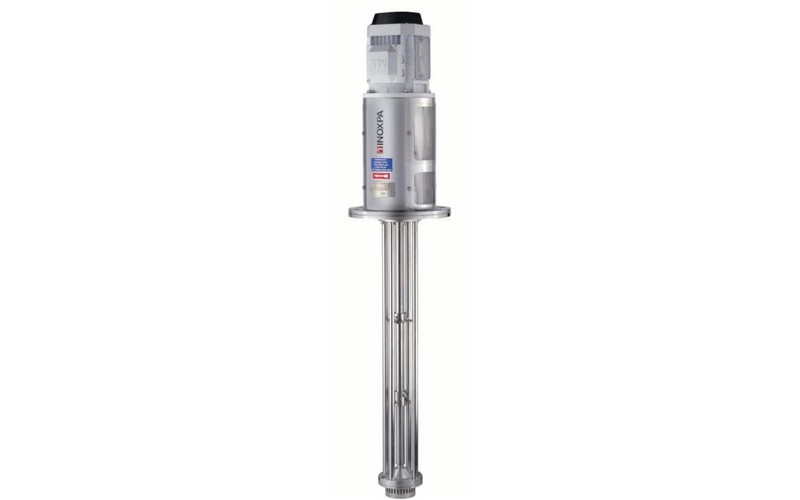

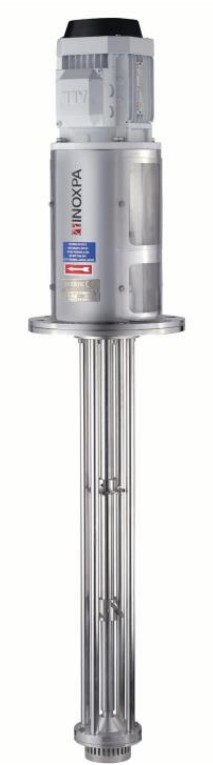

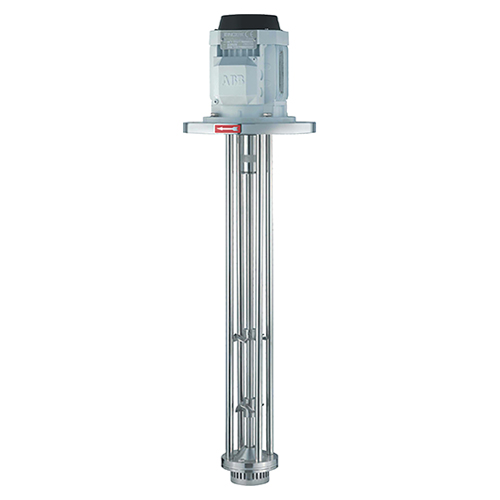

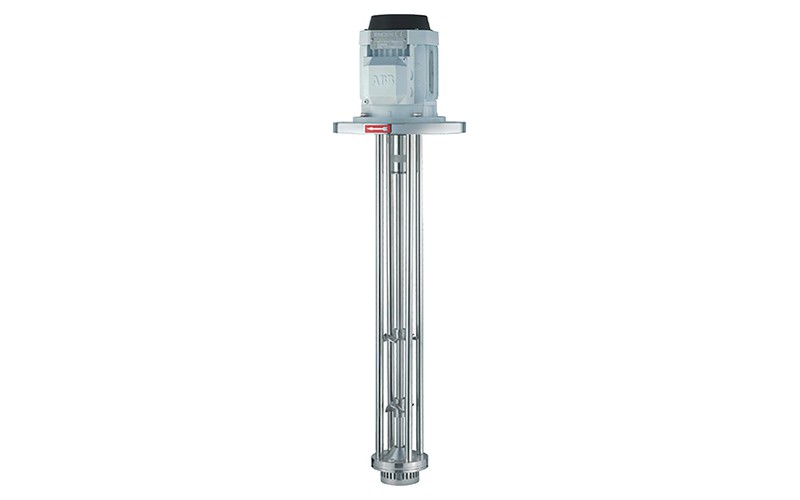

High Shear Emulsifier - Vertical Mount, INOXPA ME1100
The ME 1100 series of the high shear vertical mixers present a solution for the processes of dispersion, emulsifying, homogenisation and disintegration of solids in a wide range of products in the food-processing, cosmetics, pharmaceutical and chemical industries. Motor powers range from 1.1kW. to 37kW and shafts from 750mm to 1,770mm with options for both downthrust and circulation impellers on the shaft. Fine screen, disintegrating or slotted heads are options.
These mixers are intended for work under the atmospheric pressure and with the products of either high or low viscosity.
For particularly high viscosity products may be useful to work with a scraper/anchor -type agitator to encourage product to move off the side wall. The high speed and adjusted tolerances between the rotor and the stator result in high suction potential, the product is suctioned from the bottom of the tank and driven to the centre of the head.
The product is suctioned from the lower part of the head and the rotor thrusts it radially. Passing through the openings of the stator the product is mechanically sheared. the particles are sheared by the rotor at 20 m/s. And finally the product is hydraulically sheared while leaving the stator through the slots at a high speed . At the same time the product returns to the working head ensuring the mixing circle and generating a strong circulation inside the tank. The combination of the vertical suction and radial thrust results in a circulation flow assuming the size and the power of the mixer are correctly selected, the ingredients contained in the tank pass through the
working head hundreds of times that promotes a progressive and uniform homogenization.
Design and features
High shear, particle size reduction to less than 100 microns.
V-ring.

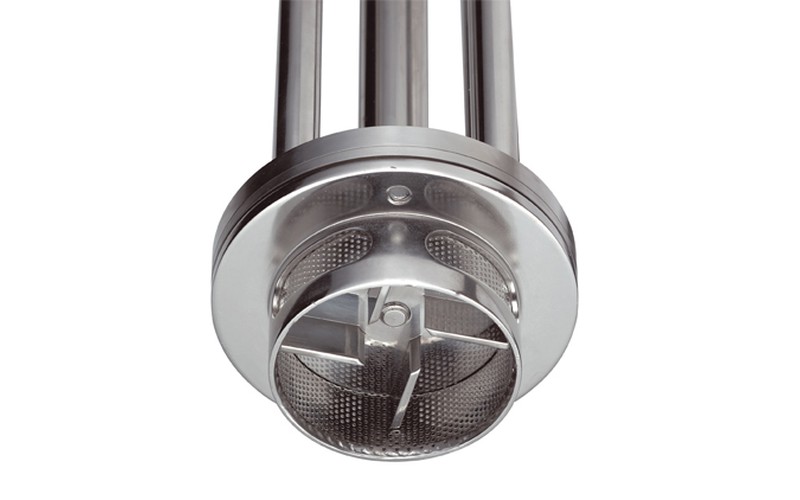

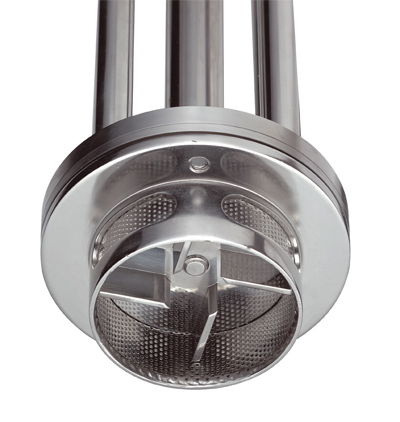

Slotted head (standard).
Possibility to replace the stator and the bushing without disassembling the mixer.

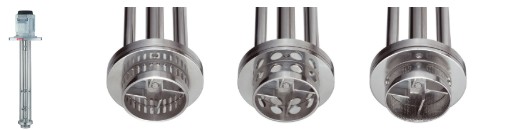

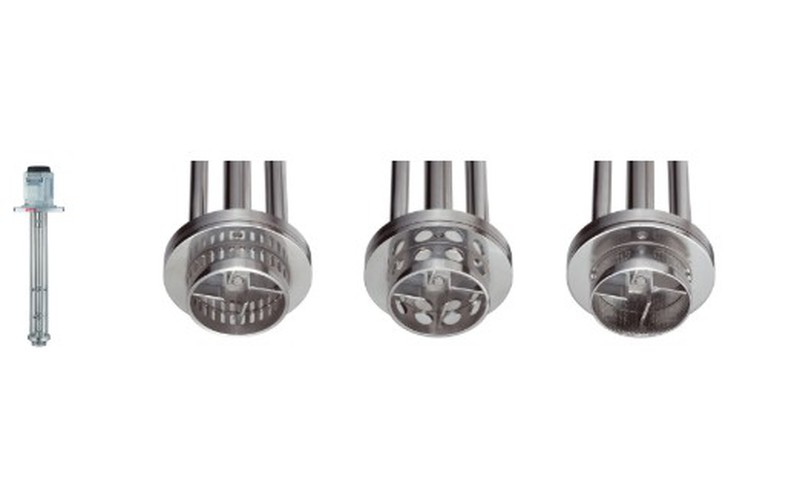

Various types of interchangeable heads.
Motors: IEC B5, IP55, F-class insulation.
Materials
Parts in contact with the product AISI316L
Guide bushing PTFE
V-ring NBR
