Stainless IBCs with Mild Steel Cage - 1,000 L Economic IBC

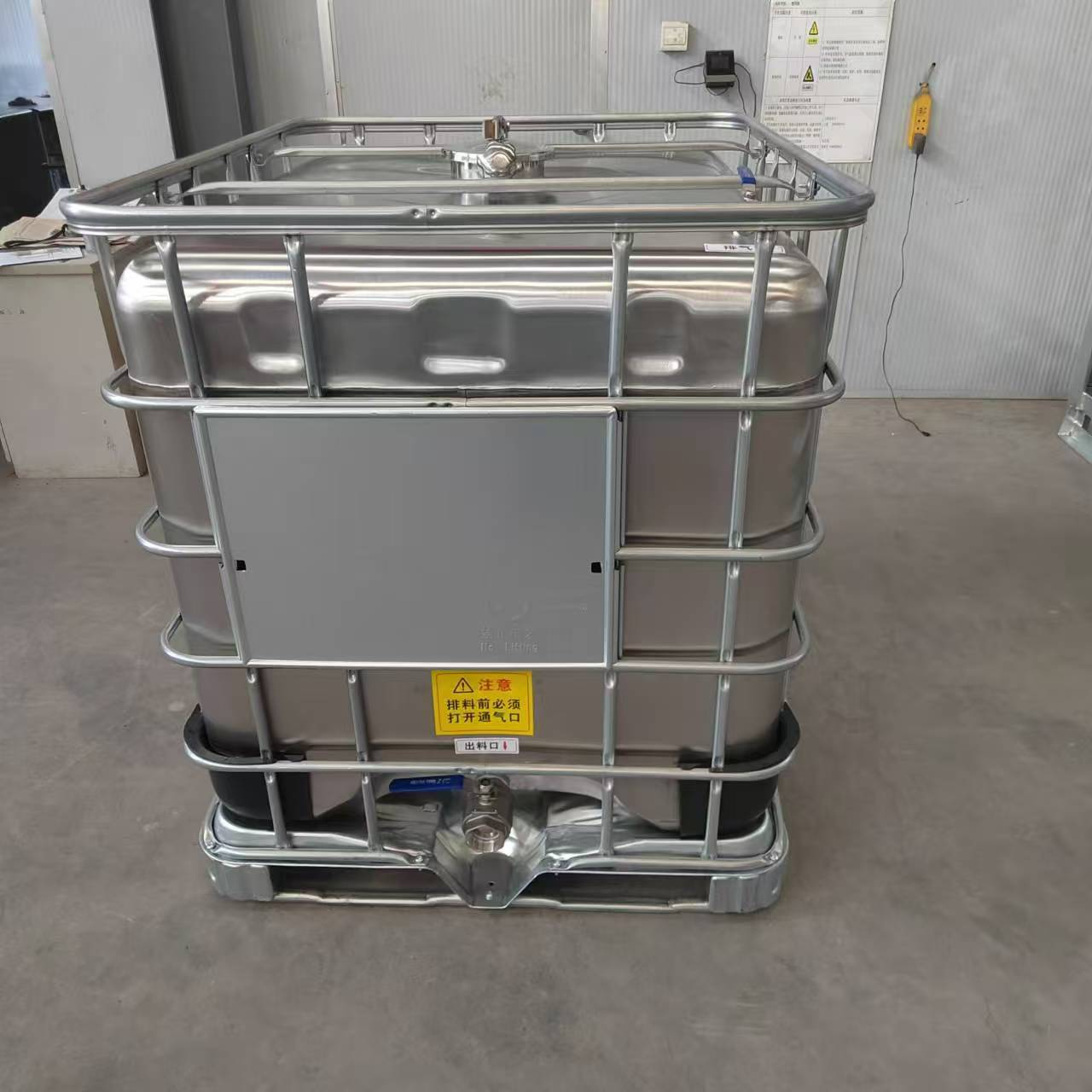

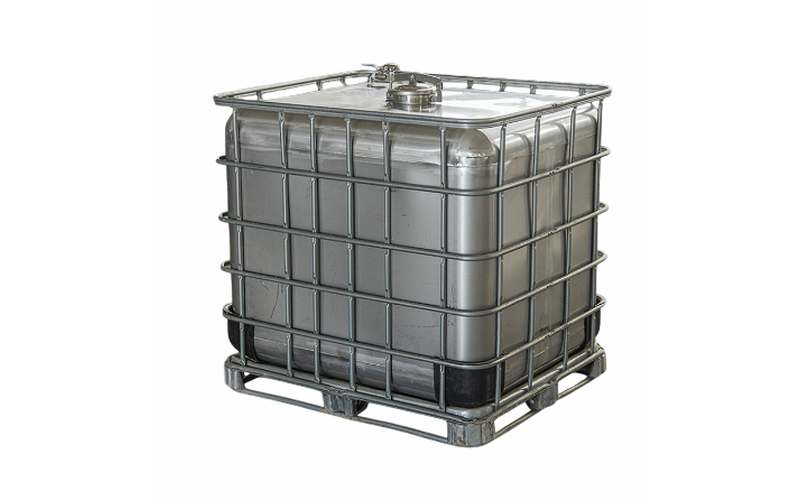

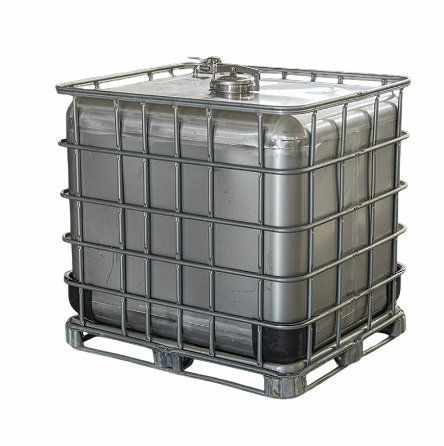

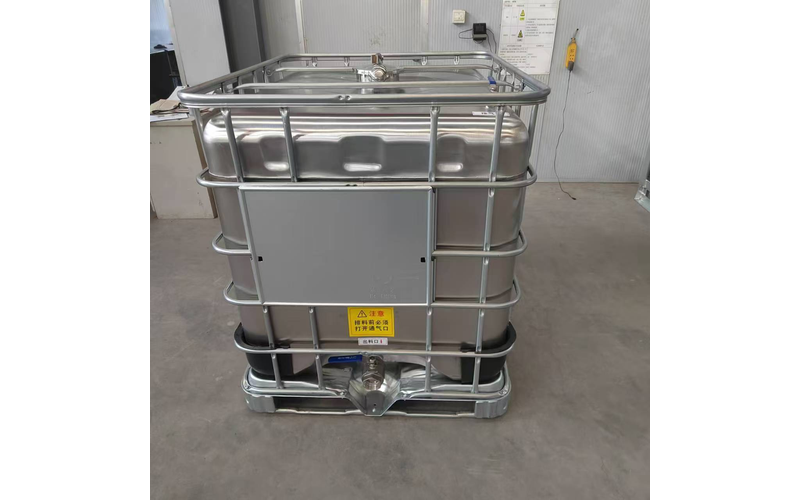

Economic stainless steel IBCs provide a reusable bulk storage and handling option where a stainless steel product-contact tank is required without the cost of an all-stainless frame. This 1,000 L IBC combines a 304 stainless steel inner tank with a protective mild steel cage and base.
The unit has a nominal capacity of 1,000 L and a design capacity of 1,050 L, with overall dimensions of approximately 1,200 × 1,000 × 1,160 mm. The rectangular footprint and surrounding cage provide a practical format for process plants requiring robust intermediate bulk storage.
304 Stainless Steel Inner Tank and Mild Steel Cage Construction
- Inner tank material: 304 stainless steel
- Internal surface finish: 2B
- Outer surface finish: brushed
- Frame: stainless steel 304 tube
- Base: stainless steel 304
- Welded construction with pickling and passivation
- Food-grade silicone or EPDM sealing material
1,000 L Capacity, Dimensions and Stacking
- Nominal capacity: 1,000 L
- Design capacity: 1,050 L
- Overall dimensions: 1,200 × 1,000 × 1,160 mm
- Tare weight: approximately 150 kg
- Maximum load weight: 1,250 kg
- Gross weight at full load: approximately 1,400 kg
- Stacking: 1 + 3 layers when full
Manway, Outlet Valve and Vent Connections
The IBC is supplied with connections for filling, discharge and venting:
- DN150 quick-opening manway with vented cover
- DN50 three-piece ball valve outlet
- DN25 vent port
Contact HD Process for the drawing and further information on this economic stainless steel IBC configuration.
