Specialists in sanitary process equipment

HD process supply static mixers for chemical and other mixing applications.

The standard materials for these include  PVC, CPVC, PVDF and PTFE.

Standard format is 6 to 14 fold helical construction (customisable).

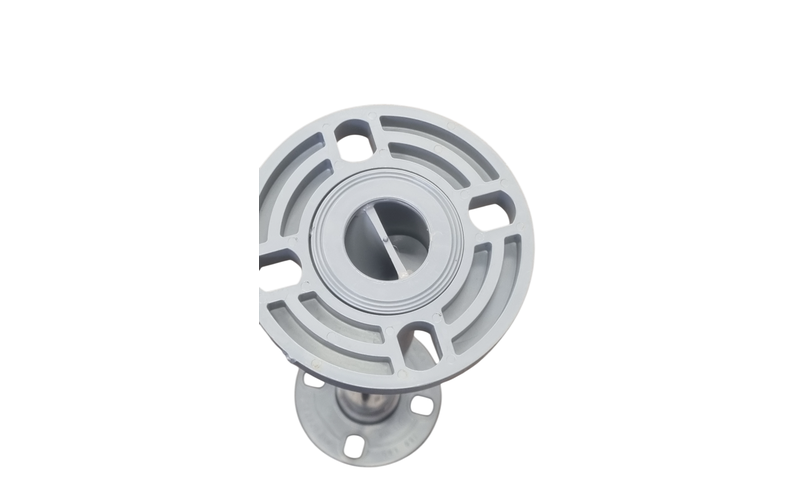

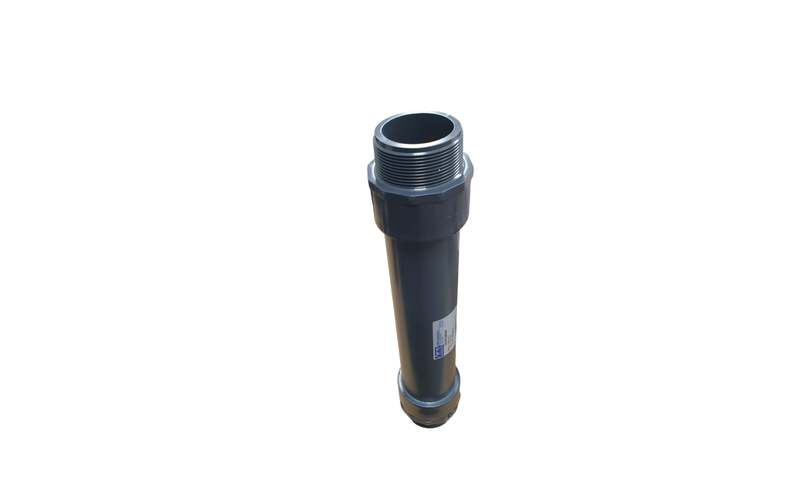

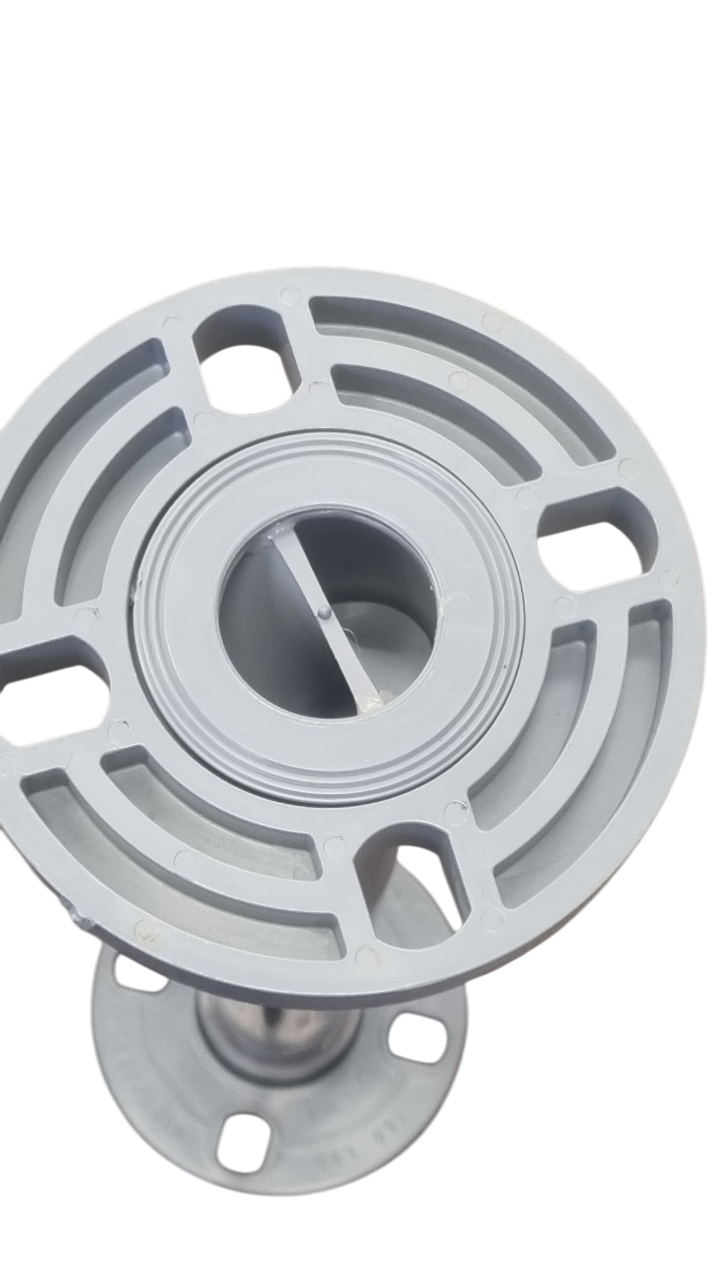

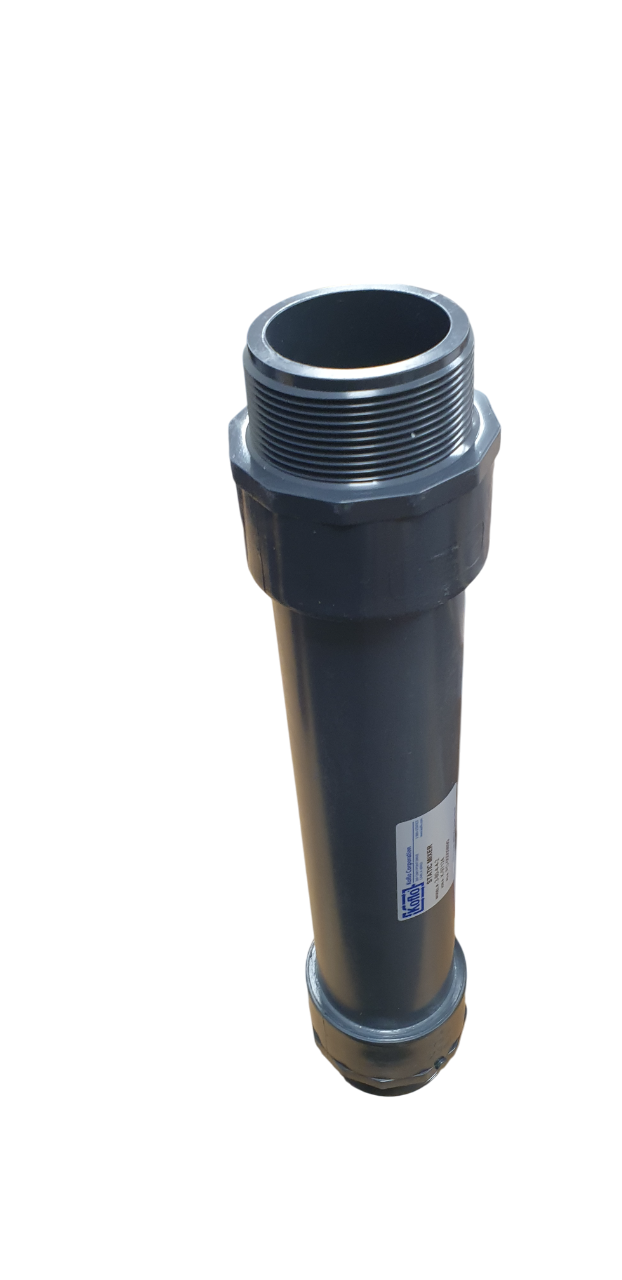

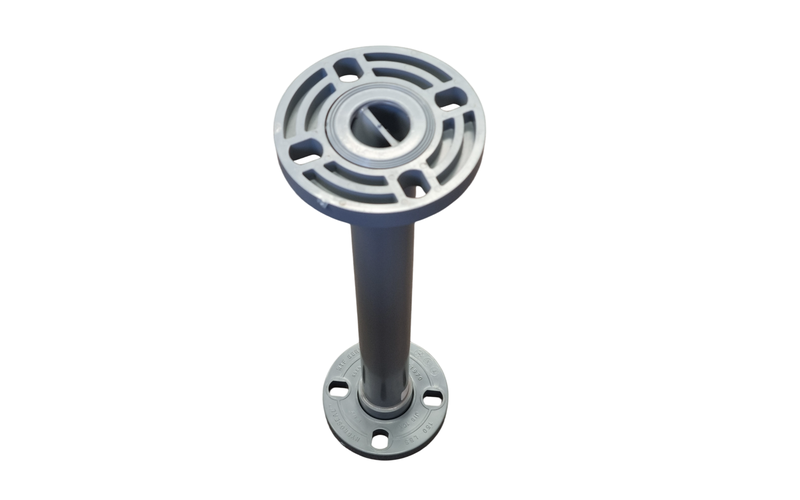

Options for BSP, flanged and (glued) socket connections.

Tubes are available in transparent and nontransparent CP plastics.

Standard sizes from 1/2" to 8"

Suitable for line pressure up to 7 Bar (clear tube) and 10 Bar (grey tube)
