Spiral Spray Head Tank Cleaning Nozzle – Pigtail Spray Heads

HD Process supply spiral spray head tank cleaning nozzles, also known as pigtail spray heads, for hygienic and industrial tank cleaning. These fixed spray devices provide reliable 360° coverage and are ideal for rinse, wash and CIP stages where a simple and robust cleaning pattern is required.

Features of Spiral and Pigtail Spray Head Nozzles

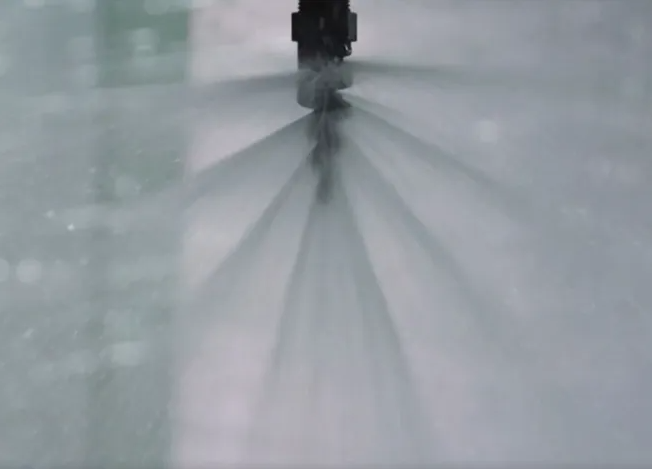

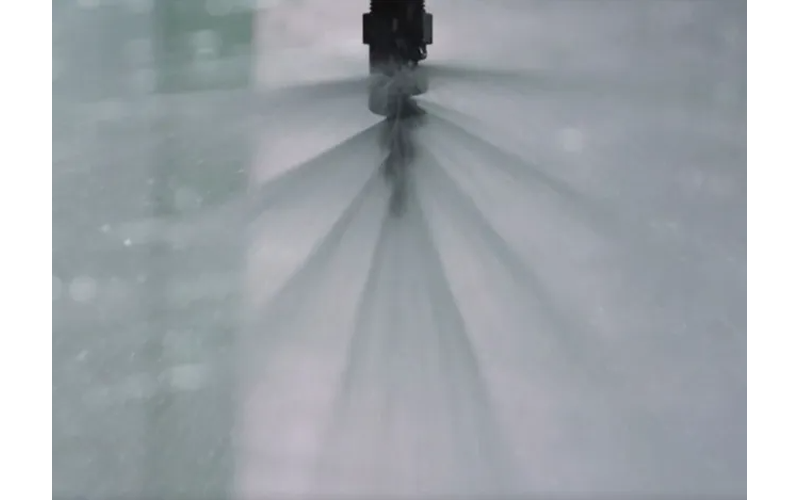

• Full 360° cleaning coverage with spiral spray pattern

• Hygienic stainless steel construction

• Suitable for low to medium pressure tank rinsing

• No moving parts which keeps maintenance low

• Available with tri clamp, weld or threaded connections

• Ideal for smaller tanks or vessels with light to moderate soiling

• Compatible with CIP systems and standard cleaning pumps

Typical Applications

• Brewery tanks, wine tanks and blending vessels

• Ingredient mixing tanks

• CIP rinse applications

• Storage tanks in food, honey, dairy and pharmaceutical production

• General industrial tank washing systems

Benefits of Pigtail Spiral Spray Heads

Spiral spray nozzles offer efficient, fixed-pattern cleaning without the complexity of rotating heads. They are a cost-effective choice when soil load is light, cleaning cycles are frequent, and simple installation is preferred. They also provide long-term reliability due to having no moving parts.

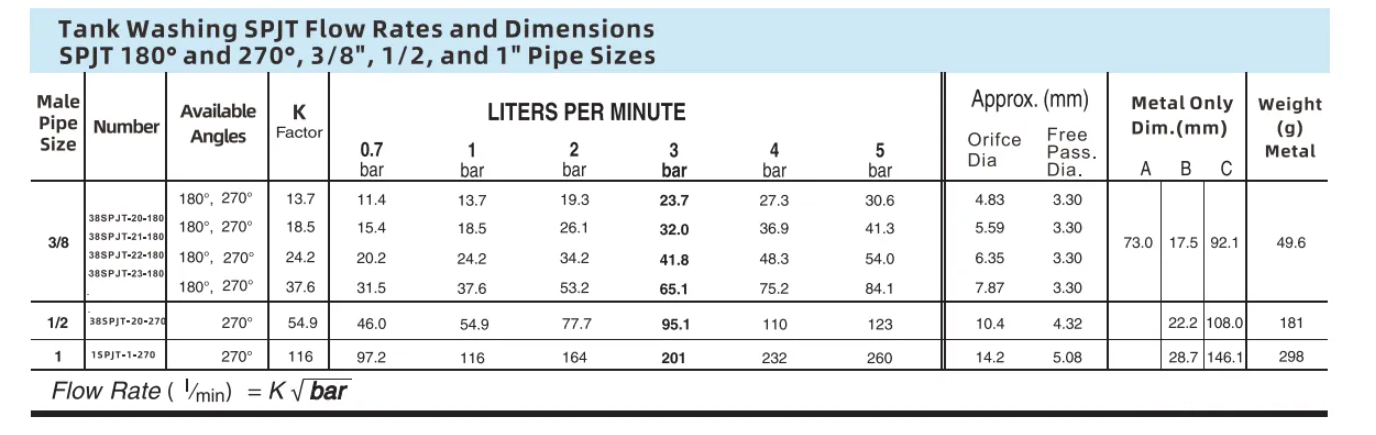

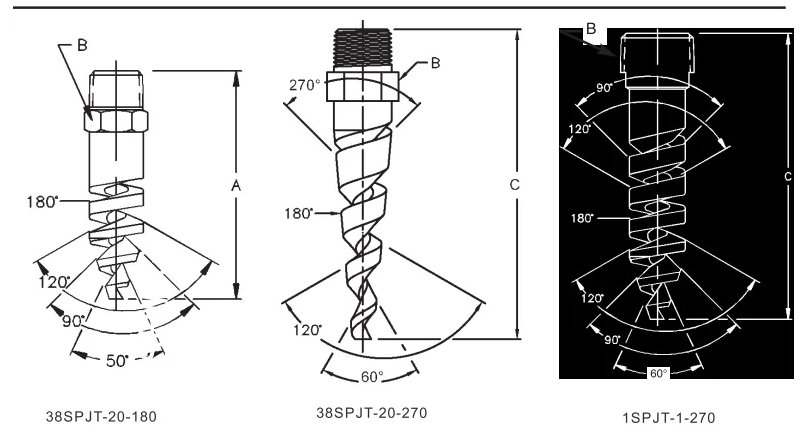

Sizes and Options

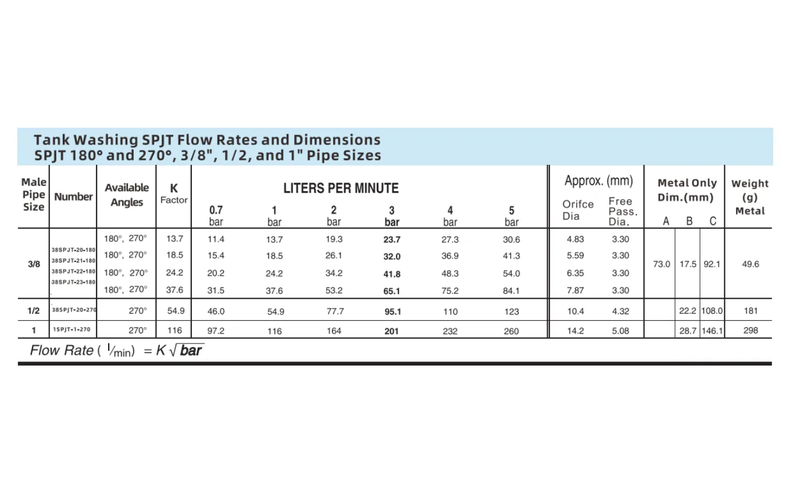

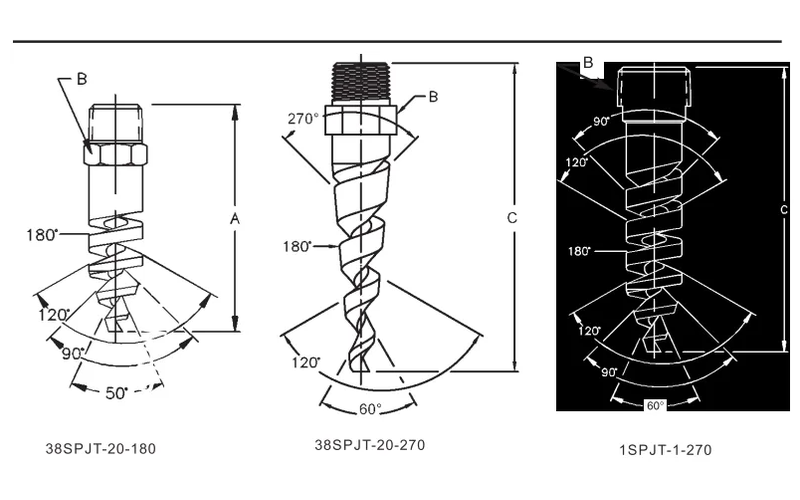

• Multiple spray diameters to suit tank size

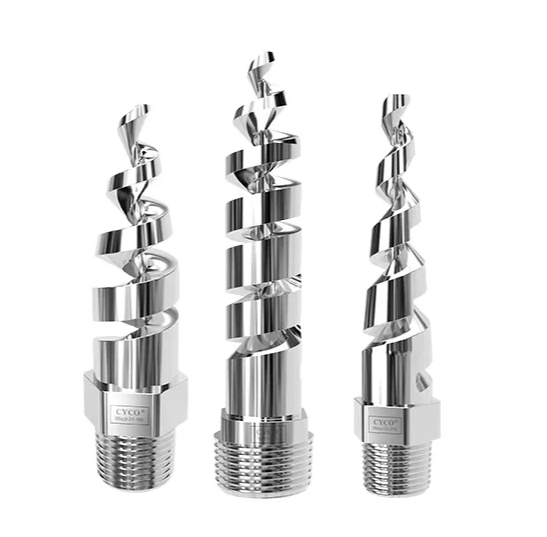

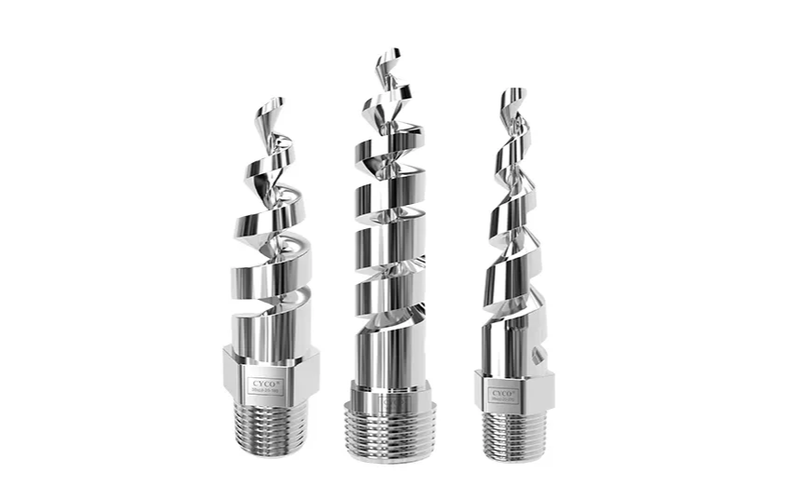

• 316L stainless steel construction

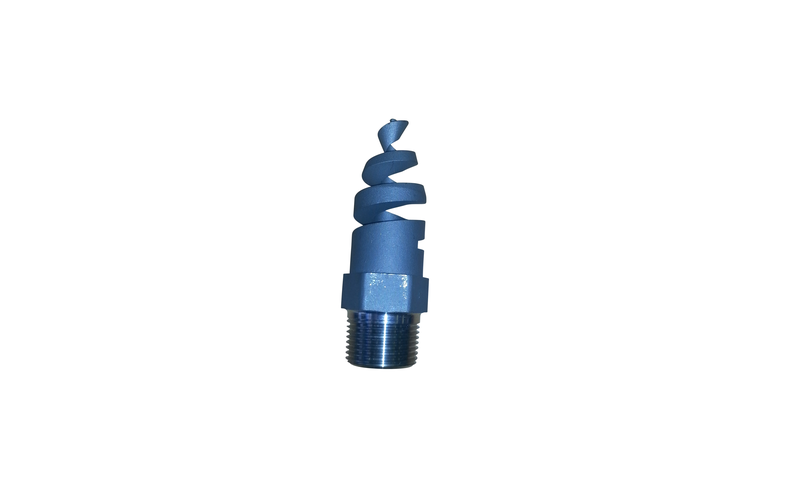

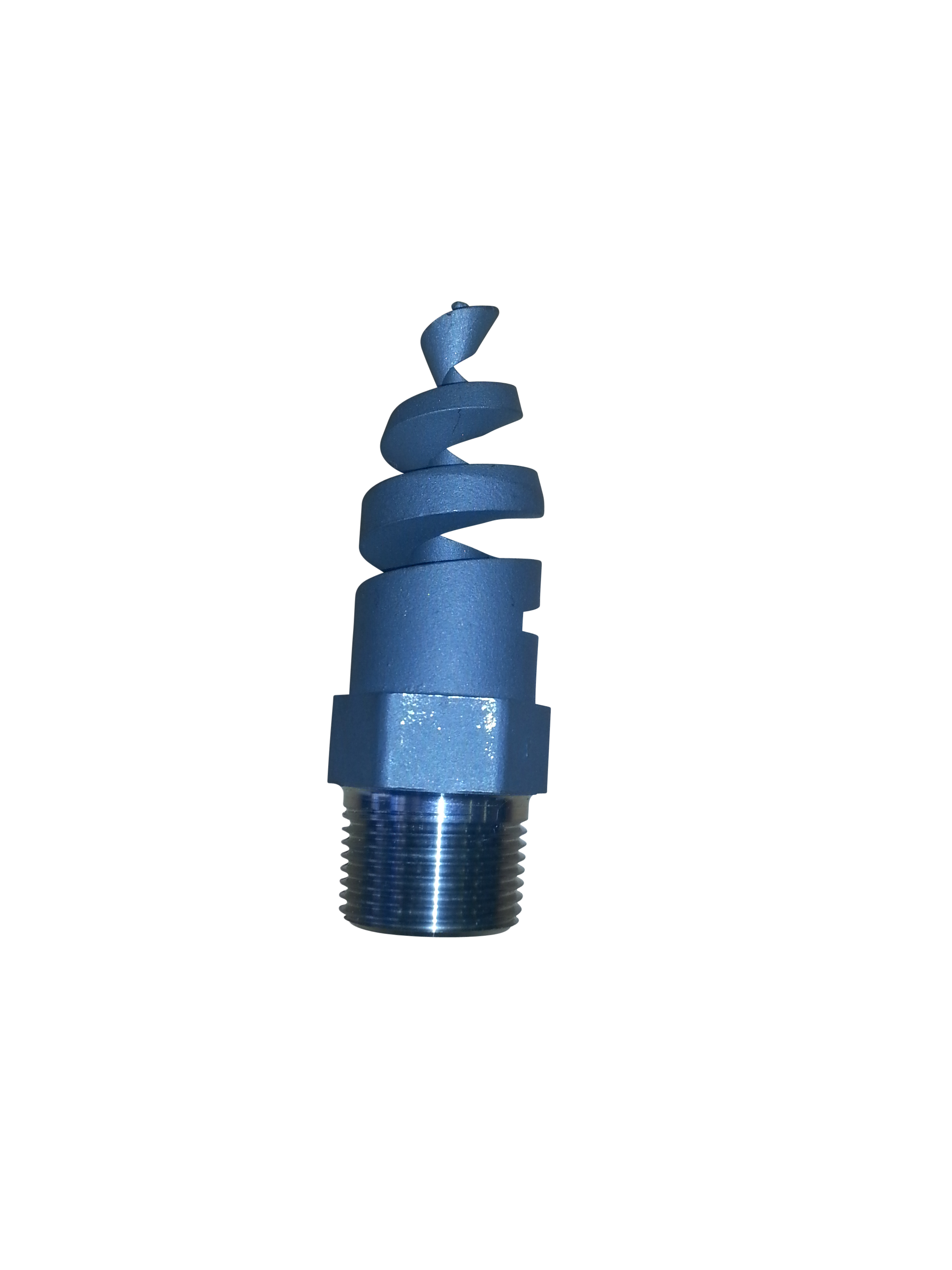

• Tri clamp or BSP connection sizes from 1 inch and above

• Suitable for a wide range of CIP pressures

Supporting Equipment Available

HD Process can provide complete tank cleaning solutions, including CIP pumps, fixed spray balls, rotating spray heads, rotary jet heads, tank manways, fittings, sight glasses, flow meters, and pressure gauges.

Contact Us

If you need help selecting the correct tank cleaning nozzle, let us know your tank size, product, cleaning pressure and required flow and we will recommend the best option.
