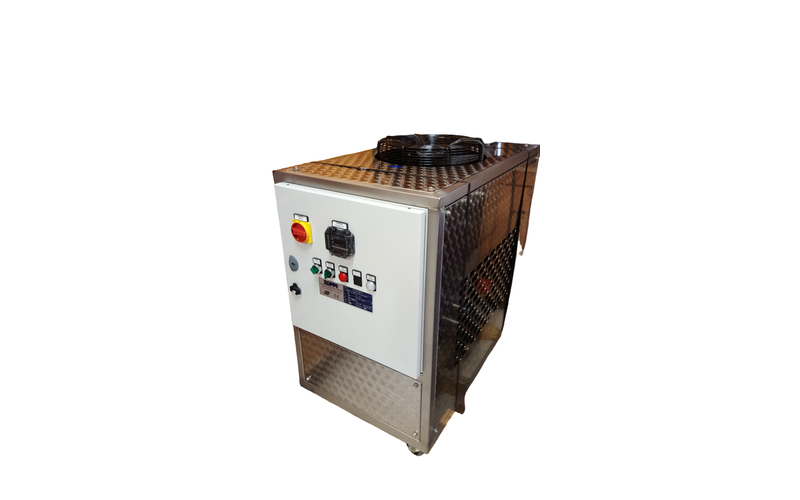

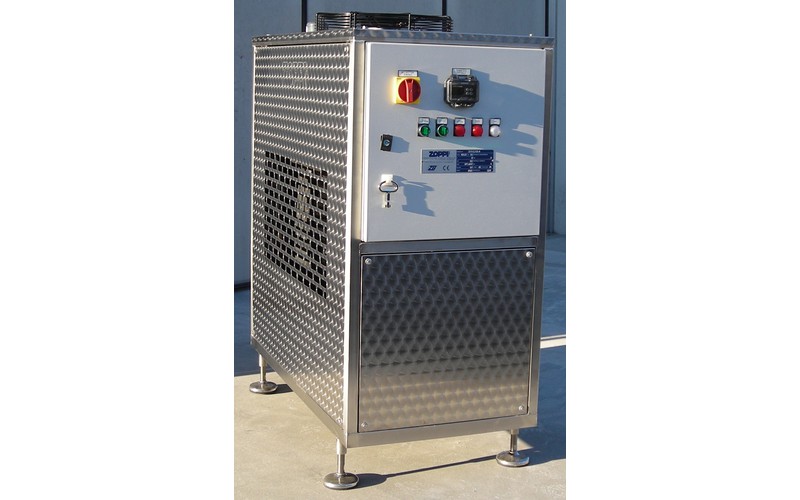

Liquid Chillers
HD Process supply small and medium cooling capacity liquid chillers. These are ideal for high accuracy applications where accurate services temperature control is required.
These units are particularly suitable for wineries, breweries, dairy, pharmaceutical and milk processing plants, laboratories, bakeries and industrial pastry making, small and medium-sized facilities for the production of liqueurs and beverage.
Cooling capacities from 1 kW up to 200 kW, single or twin independent gas circuits, depending on the model.

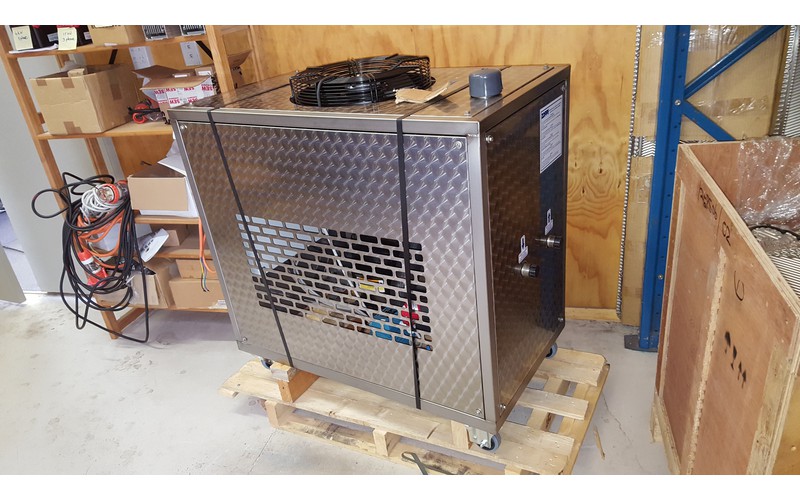

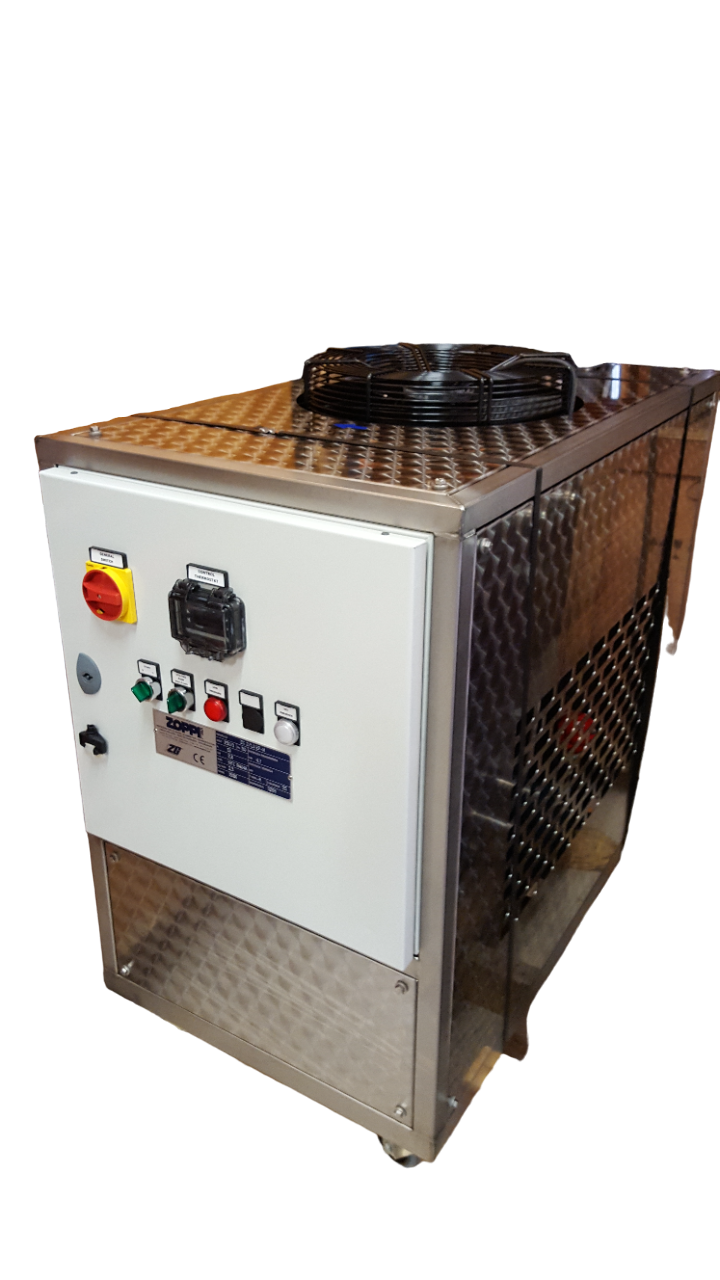

These are commonly designed to be mobile - and can be easily moved from vessel to vessel depending on processing requirements.
- Note that most of these chillers can also be run as heat pumps to provide hot services liquid.
• Hermetic Scroll or semi-hermetic alternative pistons compressors
• AISI 316L plate evaporator
• Air cooled condenser with extra-large capacity
• Electrical control box for the managing of the machine, with electronic thermostat or industrial PLC
• Structure and panelling entirely made of stainless steel
• On request with heating section for the heating of the liquid
Standard working range: +45°C / -20°C
Extended working range, on request: +60°C / -40°C
Built on monoblock structure, delivered ready to use (plug and play), are equipped, as standard, with the whole needed hydraulics, already installed aboard:
• Accumulation buffer tank, in stainless steel, insulated, with adequate capacity, for atmospheric pressure or pressurized type, for the thermal flywheel effect
• Liquid pump, in stainless steel, for the primary recirculation
• Hydraulics safety and control components: flow and level switches, pressure transmitters, etc.
• On request all pumps ca be supplied with by frequency inverters (VSDs) to keep at a defined pressure rate the head of the pumped liquid
• On request it is possible to install aboard thermoregulations for secondary sections at intermediate temperatures
Moreover, each liquid chiller can be customized to best meet the specification of utilities systems to serve.
