Filling Stations with Turntables and Bottle Conveyors
As well as the a range of machines in this section for Capping, Lid Fitting and Labelling HD Process supply programmable filling heads with integrated rotating tables and conveyor systems.
View videos here (along with the manual) for the Swienty filling machine along with integrated rotating table.
This is a very easy to set up machine and can be adapted from one size jar to another in a matter of minutes.
See in the videos how to set the program to;
- recalibrate the fill for changing products in densities
- how to change target jar size
- running multiple fills at varying speeds with high viscosity product (water).
Maximum flow rates are up to around 700LPH, Fills eg 9 x 500L bottles per minute.

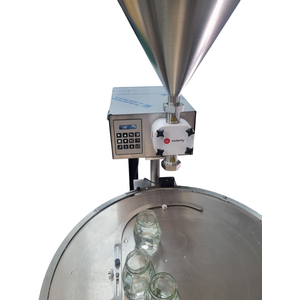

Has rotating table with photosensor (horizontally adjustable), and adjustable height filler head.

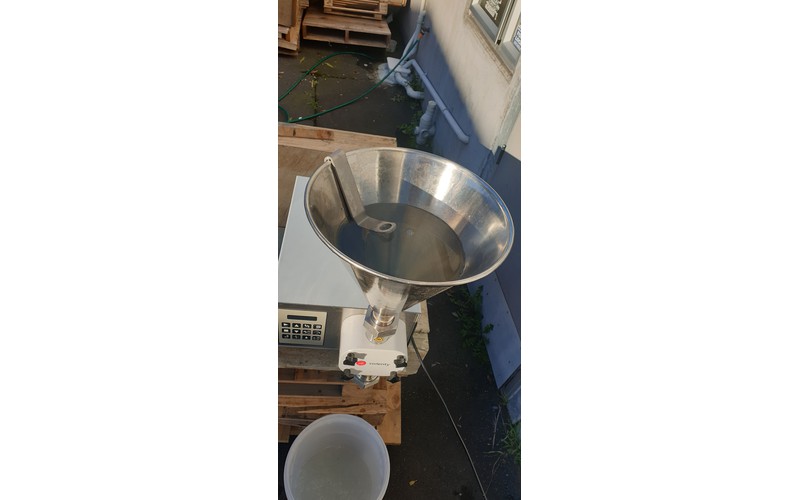

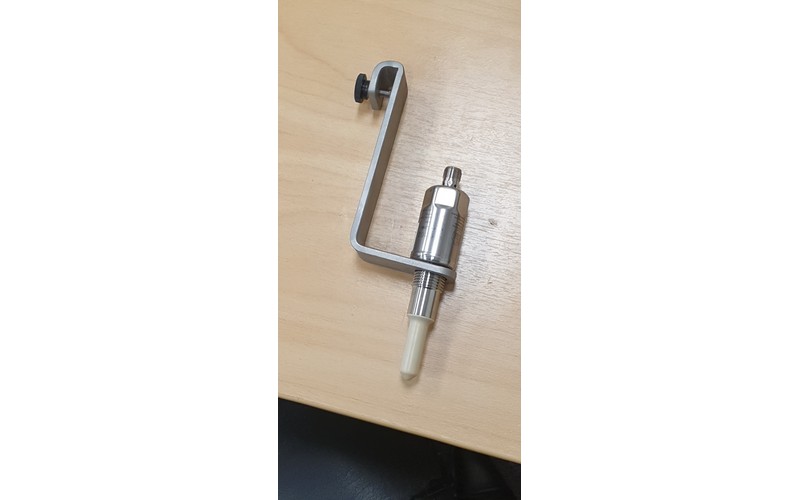

The level controlled hopper in the video stabilises the fill levels and makes each fill very repeatable.
Capping and labelling are also available as optional extras.
See section on the DAM range of filling heads here;
https://hdprocess.co.nz/produc...
