Constant Pressure Valves - Hygienic

Concept

  • HD Process supply hygienic constant-pressure valves including the ALFA LAVAL CPM range. Constant-Pressure Modulating Inlet type maintains a constant pressure in the process line at the inlet side of
  • the valve. Typical applications are after separators, heat exchangers
  • or overflow valves.
  • Constant-Pressure Modulating Outlet maintains a constant pressure in the process line at the outlet side of the valve. Typical applications are before filling/bottling machines etc.

Working principle

The valves are remote-controlled by means of compressed air. A diaphragm/valve plug system reacts immediately to any alteration of the product pressure and changes position so that the preset pressure is maintained.

Details

  • 1 inch to 3 inch size
  • In stainless steel 316 With PTFE and epdm seals
  • working pressure eight bar
  • temperature range -10 -150° C
  • Pneumatic connection 1/4 inch BSP

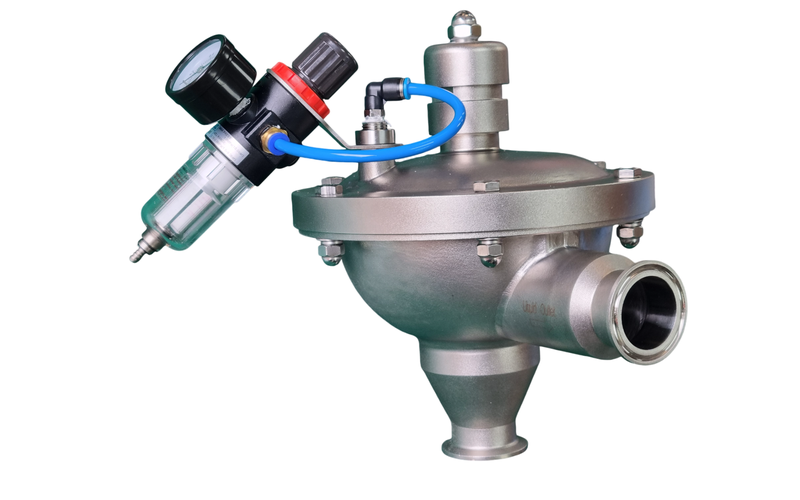

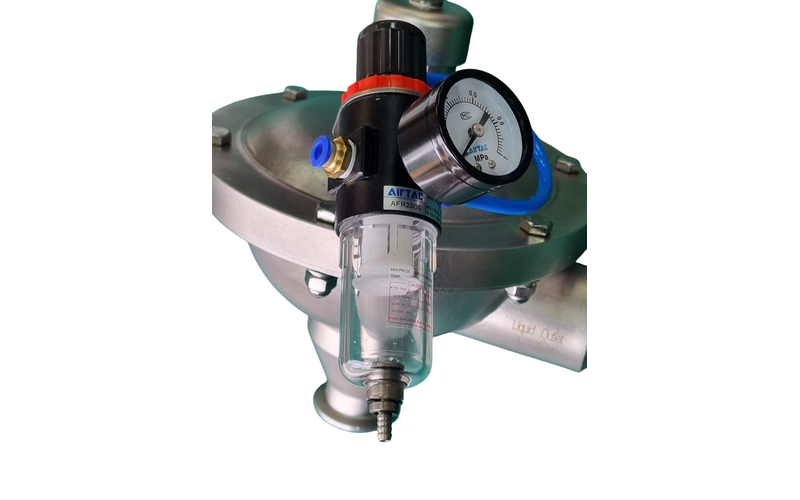

** Scroll through photos here of both the hygienic (clamp ended) and flanged versions.
